Linear Motion Rolling Guides Linear Way H Series

MH LWH

The Linear Way H series contains two rows of steel balls which contact the raceway at four points, enabling stable high accuracy and rigidity even in applications where loads have variable direction and size, or complex loads are applied. This series has the largest load rating and rigidity for a ball type, and is available in a wide range of performances and sizes. Models can be selected according to the application.

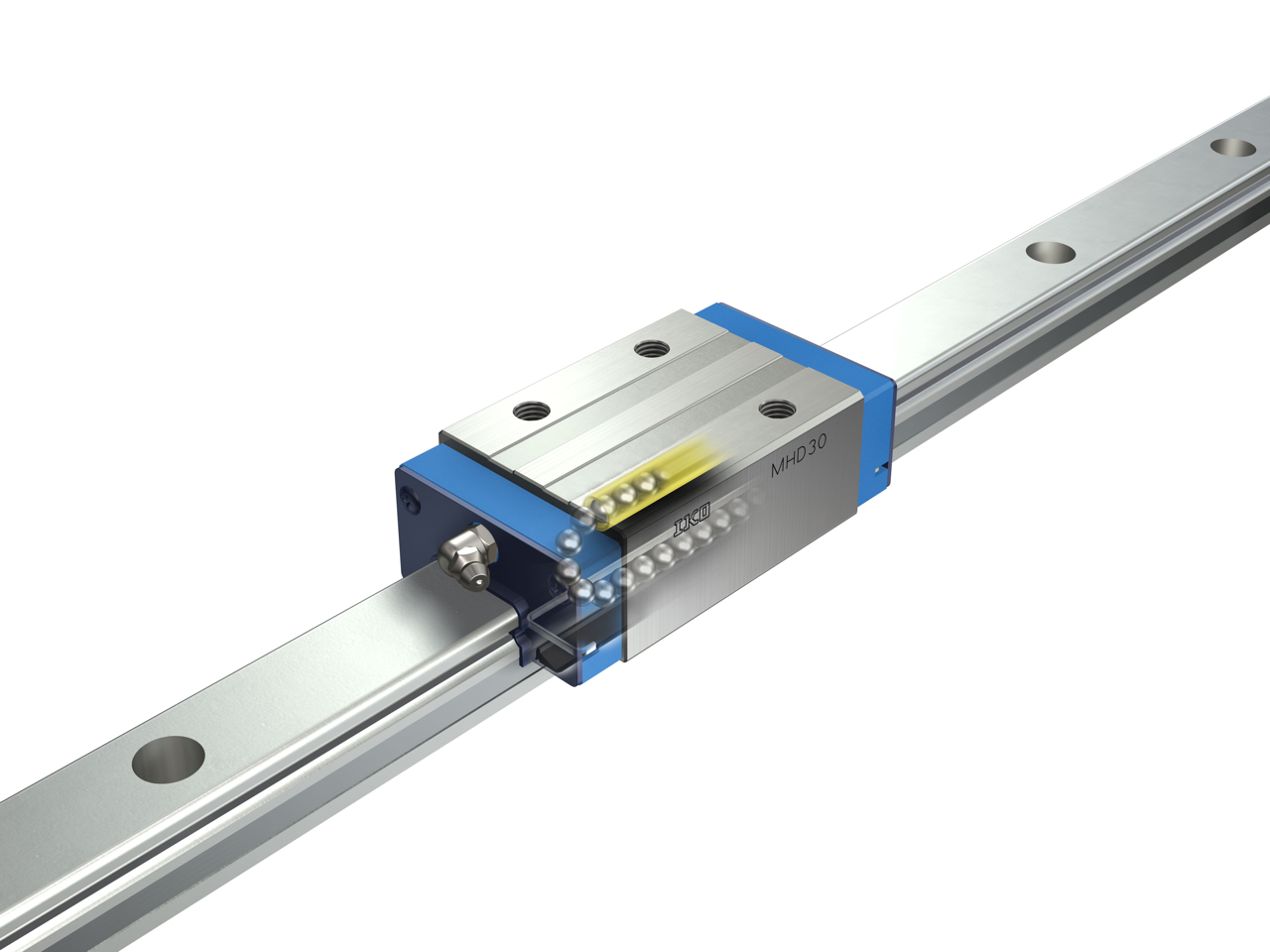

C-Lube Linear Way MH

C-Lube Linear Way MH is an H-Series linear motion rolling guide with high load rating and rigidity. It uses large-diameter steel balls and has built-in C-Lube lubrication which provides long-term, maintenance-free operation.

Maintenance-Free

Our C-Lube technology maintains the lubrication performance for an extended period of time, reducing lubrication schedules and the time it takes to manage them.

Click here for details on C-Lube

Linear Way H

LWH

Interchangeable

Interchange specifications are available. Since the slide unit and track rail dimensions are separate, each can be individually added or exchanged.

Click here for details on the interchangeable type

Flange Type and Block Type

Slide units include two flange types with different mounting directions and three narrow block types with different heights and mounting directions.

Length of Slide Unit

Available types include: short type, with the same cross-section as the standard type, high-rigidity long type and extra-high rigidity long type.

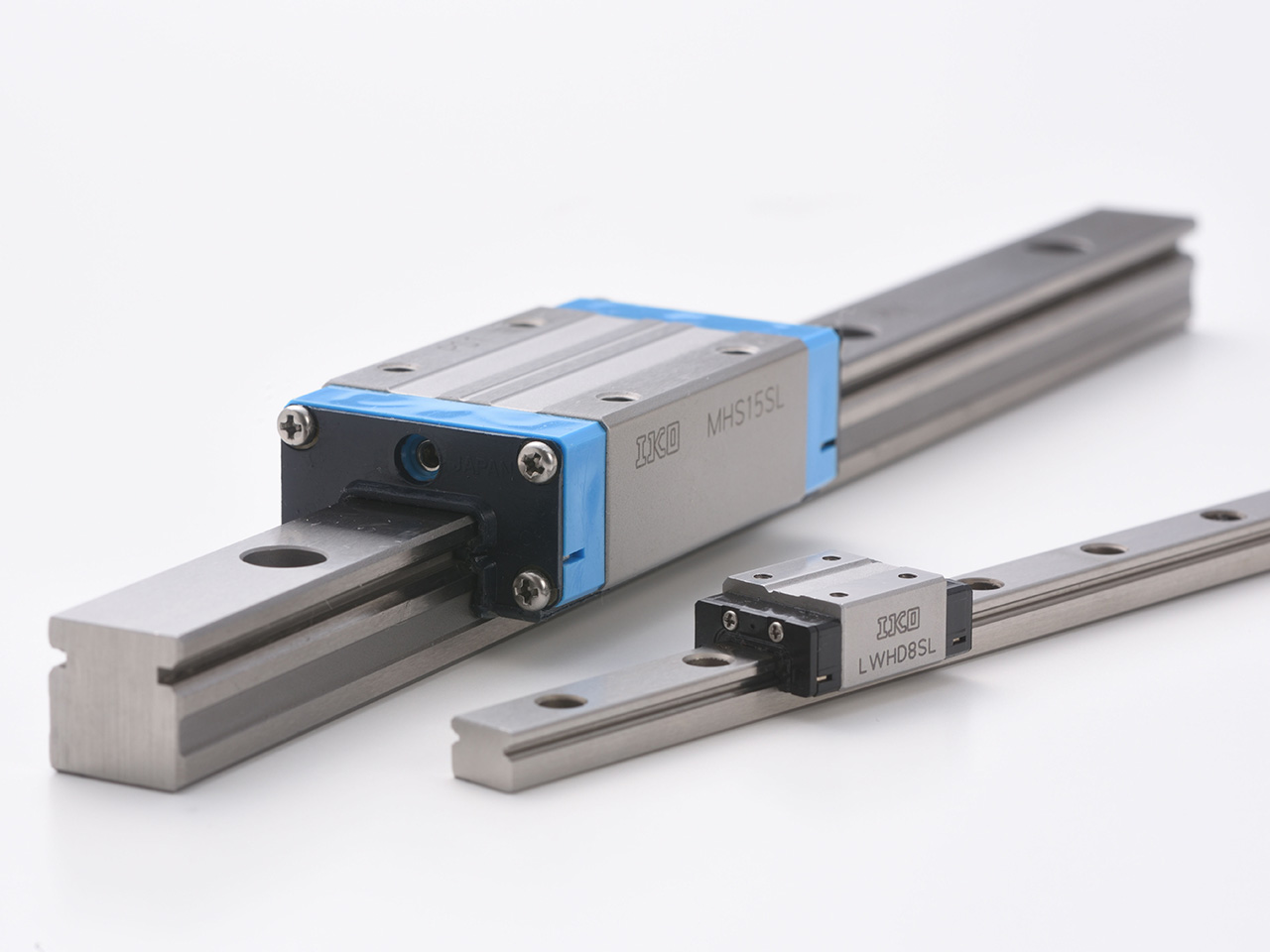

Stainless Steel

Stainless steel types, with excellent corrosion resistance, are also available. They are ideal for use in clean rooms for medical equipment, various disc readers and semiconductor manufacturing devices.

Ultra Seal Specification

The ultra seal specification provides excellent dust prevention performance thanks to a combination of the dedicated track rail finished with an overall ground finish, and the special shape of the end seal and under seal on the slide unit.

Miniature size

Miniature sizes with track rail widths of 8 mm, 10 mm and 12 mm are also available, further expanding the applications.

Line-Up

C-Lube Linear Way MH・Linear Way H - Stainless Steel

Product	Shape	Slide unit Length	Model	Size
Product	Shape	Slide unit Length	Model	8	10	12	15	20	25	30	35	45	55	65
C-Lube Linear Way MH			MHT…SL	○ (1)	○ (1)	○ (1)	○	○	○	○	-	-	-	-
C-Lube Linear Way MH			MHDC…SL	○	○	○	-	-	-	-	-	-	-	-
			MHD…SL	○	○	○	-	-	-	-	-	-	-	-
			MHDG…SL	○	○	○	-	-	-	-	-	-	-	-
C-Lube Linear Way MH			MHS…SL	-	-	-	○	○	○	○	-	-	-	-
Linear Way H			LWH…SL	-	-	-	○	○	○	○	-	-	-	-
Linear Way H			LWHT…SL	○ (1)	○ (1)	○ (1)	○	○	○	○	-	-	-	-
Linear Way H			LWHDC…SL	○	○	○	-	-	-	-	-	-	-	-
			LWHD…SL	○	○	○	-	-	-	-	-	-	-	-
			LWHDG…SL	○	○	○	-	-	-	-	-	-	-	-
Linear Way H			LWHS…SL	-	-	-	○	○	○	○	-	-	-	-

Notes （1） This may be mounted upward.

*For the models indicated in , the interchangeable specification is available.

C-Lube Linear Way MH・Linear Way H - High Carbon Steel

Product	Slide unit Shape	Slide unit Length	Model	Size
Product	Slide unit Shape	Slide unit Length	Model	8	10	12	15	20	25	30	35	45	55	65
C-Lube Linear Way MH			MH	-	-	-	○	○	○	○	○	○	-	-
			MH…M（U)	-	-	-	-	-	○	○	-	-	-	-
			MHG	-	-	-	-	○	○	○	○	○	-	-
C-Lube Linear Way MH			MHT	-	-	○ (1)	○	○	○	○	○	○	-	-
			MHT…M（U)	-	-	-	-	-	○	○	-	-	-	-
			MHTG	-	-	-	○ (1)	○	○	○	○	○	-	-
C-Lube Linear Way MH			MHD	-	-	○ (1)	○	-	○	○	○	○	-	-
			MHD…M(U)	-	-	-	-	-	○	○	-	-	-	-
			MHDG	-	-	-	-	-	○	○	○	○	-	-
C-Lube Linear Way MH			MHS	-	-	-	○	○	○	○	-	-	-	-
			MHS…M(U)	-	-	-	-	-	○	○	-	-	-	-
			MHSG	-	-	-	○	○	○	○	-	-	-	-
Linear Way H			LWH…B	-	-	-	○	○	○	○	○	○	○	○
			LWH…M（U)	-	-	-	○	○	○	○	○	○	-	-
			LWHG	-	-	-	-	○	○	○	○	○	○	○
Linear Way H			LWHT…B	-	-	○ (1)(2)	○	○	○	○	○	○	○	○
			LWHT…M（U)	-	-	-	○	○	○	○	○	○	-	-
			LWHTG	-	-	-	-	○	○	○	○	○	○	○
Linear Way H			LWHD…B	-	-	○ (2)	○	-	○	○	○	○	○	○
			LWHD…M(U)	-	-	-	○	-	○	○	○	○	-	-
			LWHDG	-	-	-	-	-	○	○	○	○	○	○
Linear Way H			LWHS…B	-	-	-	○	○	○	○	-	-	-	-
			LWHD…M(U)	-	-	-	○	○	○	○	-	-	-	-
			LWHSG	-	-	-	-	○	○	○	-	-	-	-
Linear Way H			LWHY	-	-	-	○	○	○	○	○	○	-	-

Notes (1) This may be mounted upward.
Notes(2) "…B" is not included in the model code.。

*For the models indicated in , the interchangeable specification is available.

Special Specifications

Caps for rail mounting holes

Dedicated caps for rail mounting holes are included. They close track rail mounting holes to improve sealing property in a motion direction. Contact IKO for aluminum alloy caps for rail mounting holes.

Rail over plate for track rail

Deliver with the track rail cover plate mounted. Covering the upper surface with U-shape stainless steel thin plate after assembly of the track rail improves the sealing property further. Change the end seal to dedicated one.

Double end seals

Double end seals are mounted to the slide unit to improve dust prevention.

Scraper

A metal scraper is mounted to the slide unit. The scraper is non-contact type and effectively eliminates large foreign substances adhering to the track rail.

Female threads for bellows

Female threads for bellows are prepared on the slide unit and track rail ends.

Black chrome surface treatment

Acrylate resin coating is applied to improve the rust prevention property after black impregnated chrome surface treatment.

Fluorine black chrome surface treatment

Fluorinated resin coating is applied to improve the rust prevention property after black impregnated chrome surface treatment. In addition, this prevent foreign substances from sticking to the surface.

Inner seal

Attach the inner seal to the inside of the slide unit.

Under seal

The seal is attached to the bottom of the slide unit to prevent foreign substances from entering from underneath.

With C-Lube plate

The C-Lube impregnated with lubricant is attached inside the end seal of the slide unit, so that the interval for reapplicating lubricant can be extended.
