Linear Motion Rolling Guides Linear Way L Series

  • Linear Way L Series
  • C-Lube Linear Way ML
  • Linear Way

Linear Motion Rolling Guides Linear Way L Series

ML LWL

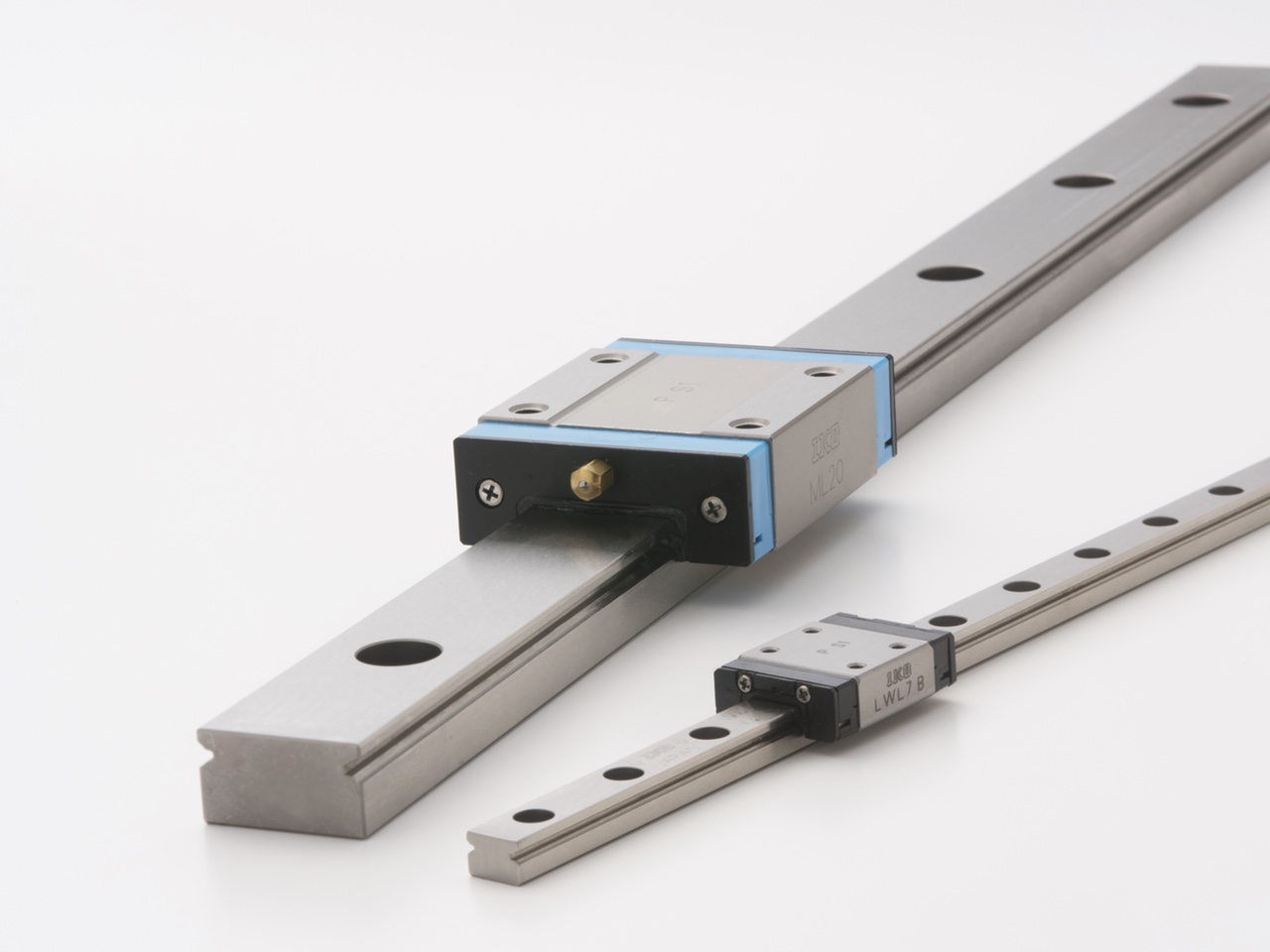

The IKO Linear Way L has two rows of balls that contact the raceway at four points. Despite its very small body, it provides stable accuracy and rigidity even in applications where load has variable direction and size, or complex load is applied. The stainless steel specification, which is the base model, is available in a range of shapes and sizes that can be selected according to the application.

Maintenance-Free

Our C-Lube technology maintains the lubrication performance for an extended period of time, reducing lubrication schedules and the time it takes to manage them.


Interchangeable

Interchange specifications are available. Since the slide unit and track rail dimensions are separate, each can be individually added or exchanged.


Standard Type and Wide Rail Type

The slide unit is available in a standard type and wide type, the latter suitable for use with a single track rail.

Length of Slide Unit

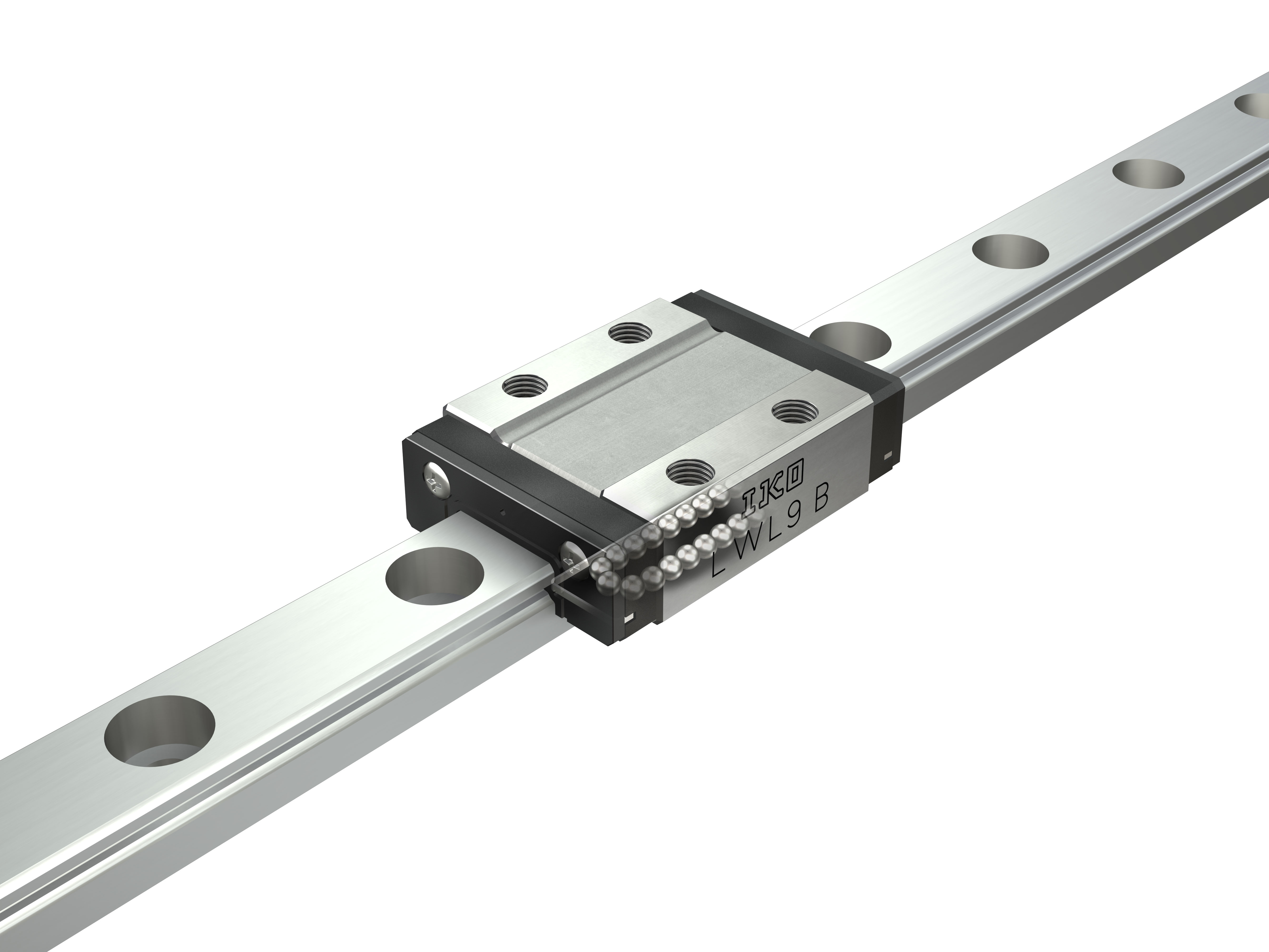

Three stainless steel ball retaining types with the same cross-sectional dimensions but different slide unit lengths are available: short type, standard type and high-rigidity long type. They can be selected according to the application.

Stainless Steel and High Carbon Steel Types

Stainless steel types, with excellent corrosion resistance, are also available. They are ideal for use in cleanroom machines and equipment, such as medical equipment, various disc readers and semiconductor manufacturing devices. The high carbon steel type, with a track rail that can be modified, is used for general-purpose applications such as conveying and equipment handling.

Ball Retention

The slide unit incorporates a ball retaining band which prevents the ball from dropping down when the slide unit is removed from the track rail, making it easy to handle.

Tapped Rail

The track rail is available in the standard specification where the bolts pass through the through hole downward, and the tapped rail specification where the track rail is threaded. Since the mounting direction can be selected, it offers a wider range of options in machine design.

Line-Up

C-Lube Linear Way ML/Linear Way L - Stainless steel

Product Track Rail Length of slide unit Structure Model Size
1 2 3 5 7 9 12 15 20 25
C-Lube Linear Way ML 標準レール仕様 ショート Ball retained type MLC - - -
スタンダード Ball retained type ML - - -
long Ball retained type MLG - - - -
超ロング Ball retained type MLL - - - - - - -
C-Lube Linear Way ML タップドレール仕様上方向取付け ショート ball non-retained type MLC - - - - - - - - -
Ball retained type MLC…N - - - - - - -
スタンダード ball non-retained type ML - - - - - - - - -
Ball retained type ML…N - - - - - - -
ロング Ball retained type MLG…N - - - - - - - -
ロング Ball retained type MLL…N - - - - - - - - -
Linear Way L 標準レール仕様 ショート Ball retained type LWLC…B - - -
スタンダード Ball retained type LWL…B - - -
ロング Ball retained type LWLG…B - - - -
Linear Way L タップドレール仕様上方向取付け ショート ball non-retained type LWLC - - - - - - - - -
Ball retained type LWLC…N - - - - - - -
スタンダード ball non-retained type LWL - - - - - - - -
Ball retained type LWL…N - - - - - - -
ロング Ball retained type LWLG…N - - - - - - - -
Linear Way L タップドレール仕様横方向取付 スタンダード ball non-retained type LWL…Y - - - - - - - - -
Linear Way L ソリッドレール仕様 スタンダード ball non-retained type LWL - - - - - - - - -

*For the models indicated in , the interchangeable specification is available.

Linear Way L - High Carbon Steel

Product Track Rail Length of slide unit Structure Model Size
1 2 3 5 7 9 12 15 20 25
Linear Way L 標準レール仕様 スタンダード Ball retained type LWL…BCS - - - - - -

*For the models indicated in , the interchangeable specification is available.

C-Lube Linear Way ML・Linear Way L - Stainless Steel

Product Track Rail Length of slide unit Structure Model Size
4 6 10 14 18 24 30 42
C-Lube Linear Way ML(Wide type) 標準レール仕様 ショート Ball retained type MLFC - -
ball non-retained type MLFC - - - - - - -
スタンダード Ball retained type MLF - -
ball non-retained type MLF - - - - - - -
ロング Ball retained type MLFG - - -
C-Lube Linear Way ML(Wide type) タップドレール仕様上方向取付け ショート Ball retained type MLFC…N - - - - -
ball non-retained type MLFC…N - - - - - - -
スタンダード Ball retained type MLF…N - - - - -
ball non-retained type MLF…N - - - - - - -
ロング Ball retained type MLFG…N - - - - - -
Linear Way L(Wide type) 標準レール仕様 ショート Ball retained type LWLFC…B - -
ball non-retained type LWLFC - - - - - - -
スタンダード Ball retained type LWLF…B - -
ball non-retained type LWLF - - - - - -
ロング Ball retained type LWLFG…B - - -
Linear Way L(Wide type) タップドレール仕様上方向取付け ショート Ball retained type LWLFC…N - - - - -
ball non-retained type LWLFC…N - - - - - - -
スタンダード Ball retained type LWLF…N - - - - -
ball non-retained type LWLF…N - - - - - - -
ロング Ball retained type LWLFG…N - - - - - -

*For the models indicated in , the interchangeable specification is available.

Linear Way L - High Carbon Steel

Product Track Rail Length of slide unit Structure Model Size
4 6 10 14 18 24 30 42
Linear Way L(Wide type) 標準レール仕様 スタンダード Ball retained type LWLF…BCS - - - -

*For the models indicated in , the interchangeable specification is available.

Special Specification

Under seal

The seal is attached to the bottom of the slide unit to prevent foreign substances from entering from underneath.

With C-Lube plate

The C-Lube impregnated with lubricant is attached inside the end seal of the slide unit, so that the interval for reapplicating lubricant can be extended.

Special environment seal

The standard end seal and under seal are replaced with seals for special environment that can be used at high temperatures.
