Linear Motion Rolling Guides C-Lube Linear Way MLV
Linear Motion Rolling Guides C-Lube Linear Way MLV

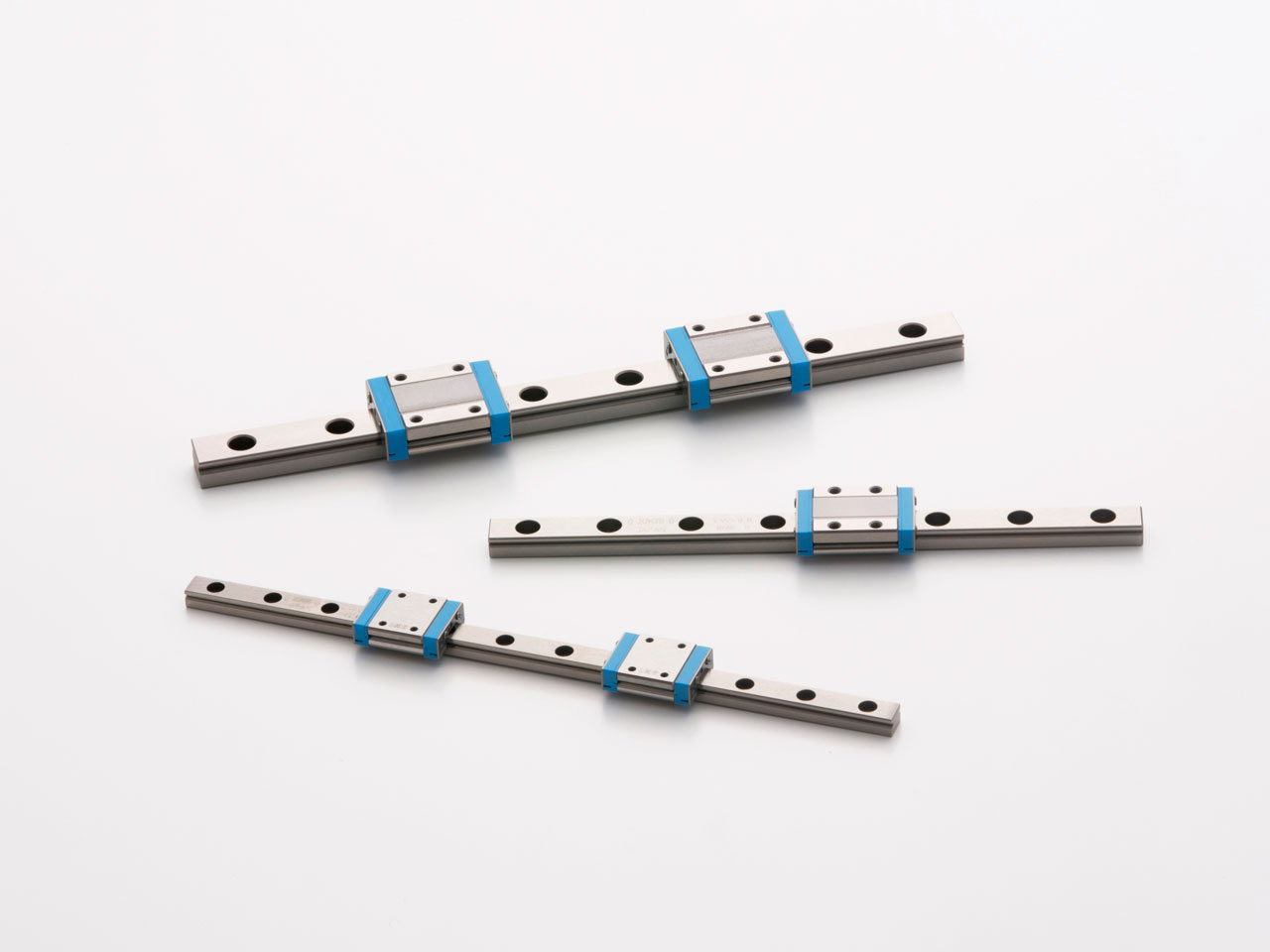

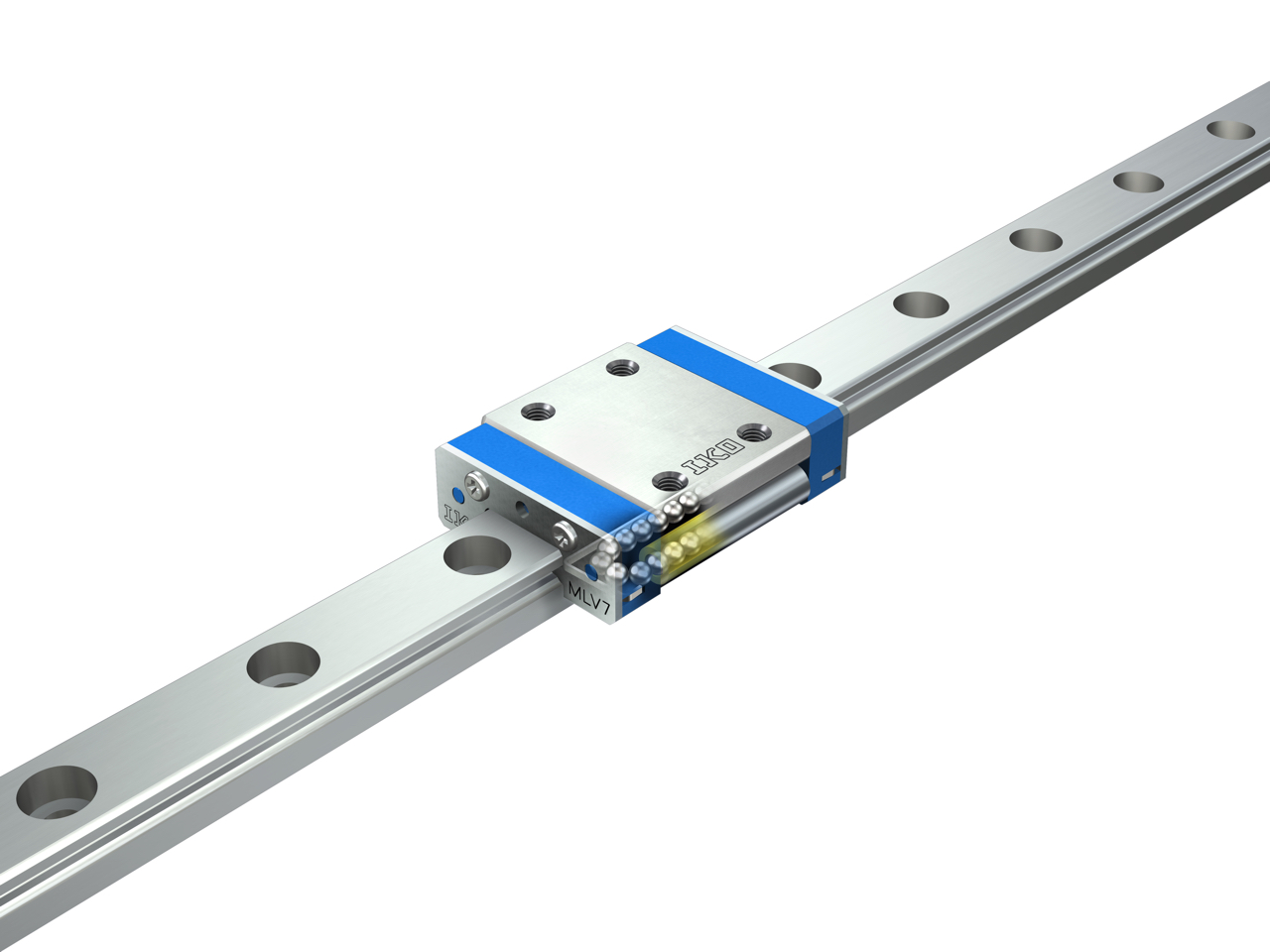

IKO C-Lube Linear Way MLV is a small linear motion rolling guide utilizing a simple, two-row raceway with a four point contact structure. Long-term, maintenance-free operation is achieved by using built-in C-Lube lubrication. MLV has the same basic performance as C-Lube Linear Way ML, but is more economical because of a review and redesign of the structure, including the ball recirculation section.
Product Features
Maintenance-Free
Since the lubrication oil inside C-Lube maintains the lubrication performance for a long time, it reduces annoying lubricating management work.
Lightweight and Compact
Super small size achieved by simple two-row raceway with four-point-contact structure and original miniaturizing technology.
Smooth and Light Sliding
Because C-Lube does not come in direct contact with the track rail, smooth and light sliding with no increase of frictional resistance has been achieved.
Cost Performance
Costs are reduced due to a redesign of the structure, including the ball circulation section, without an impact on basic performance.
Stainless Steel
Stainless steel is used for the steel components, making them resistant to rust and suitable for applications where rust prevention oil is not recommended, or in a cleanroom environment.
Ball Retention
The slide unit incorporates the ball retaining band, which prevents the ball from dropping down when the slide unit is removed from the track rail, making it easy to handle.
Line-Up
C-Lube Linear Way MLV
| Product | Shape | Length of slide unit | Model | Size | ||
|---|---|---|---|---|---|---|
| 7 | 9 | 12 | ||||
| C-Lube Linear Way MLV |
 |
Standard | MLV | ○ | ○ | ○ |
Special Specifications
End seal
Instead of scrapers on both sides of the slide unit, end seals are mounted to improve dust prevention.
Specified grease
Low Dust-Generation Grease for Clean Environment CG2 is prepacked.
