Linear Motion Rolling Guides Linear Way Module

LWLM LWM LRWM

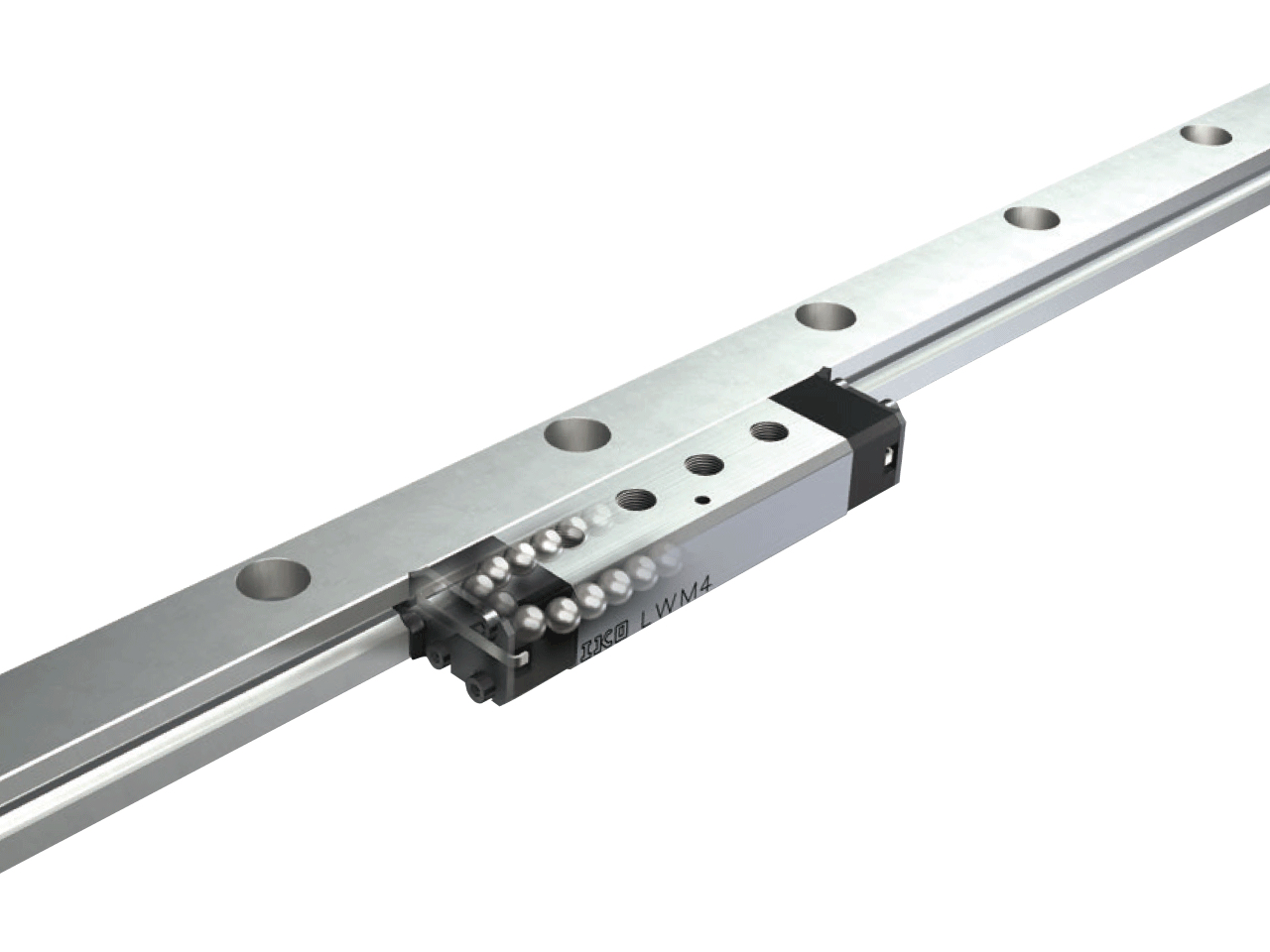

Compact linear motion rolling guide consisting of a track rail and slide member, forming the mechanism for the smallest unit of linear motion.

Product Features

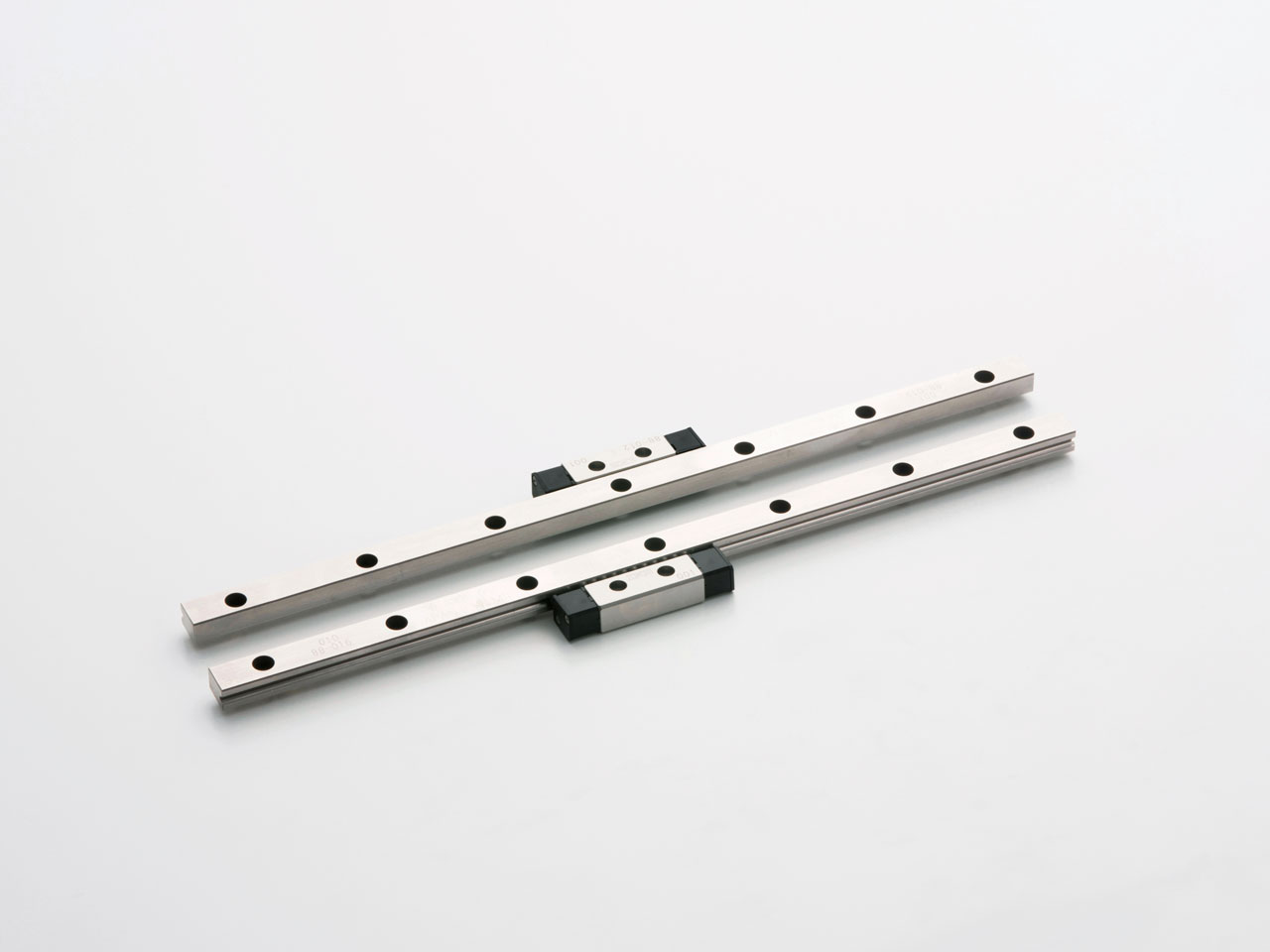

Three models are available: LWLM , which use balls for rolling elements, and LRWM, which uses rollers. LWLM is made of stainless steel of excellent corrosion resistance. They are suitable for applications where rust prevention oil is not welcome, such as in a cleanroom environment.

Line-Up

Linear Way Module

Product	Shape	Model	Size
Product	Shape	Model	7	9	11
Linear Way LM		LWLM	○	○	○

Linear Way Module

Product	Shape	Model	Size
Product	Shape	Model	1	2	3	4
Linear Way LM		LWM	○	○	○	○

Linear Way Module

Product	Shape	Model	Size
Product	Shape	Model	2	3	4	5	6
Linear Roller Way M		LRWM	○	○	○	○	○

Special Specifications

Caps for rail mounting holes

Dedicated caps for rail mounting holes are included. They close track rail mounting holes to improve sealing property in a motion direction. Contact IKO for aluminum alloy caps for rail mounting holes.

Other Special Environment Specifications
