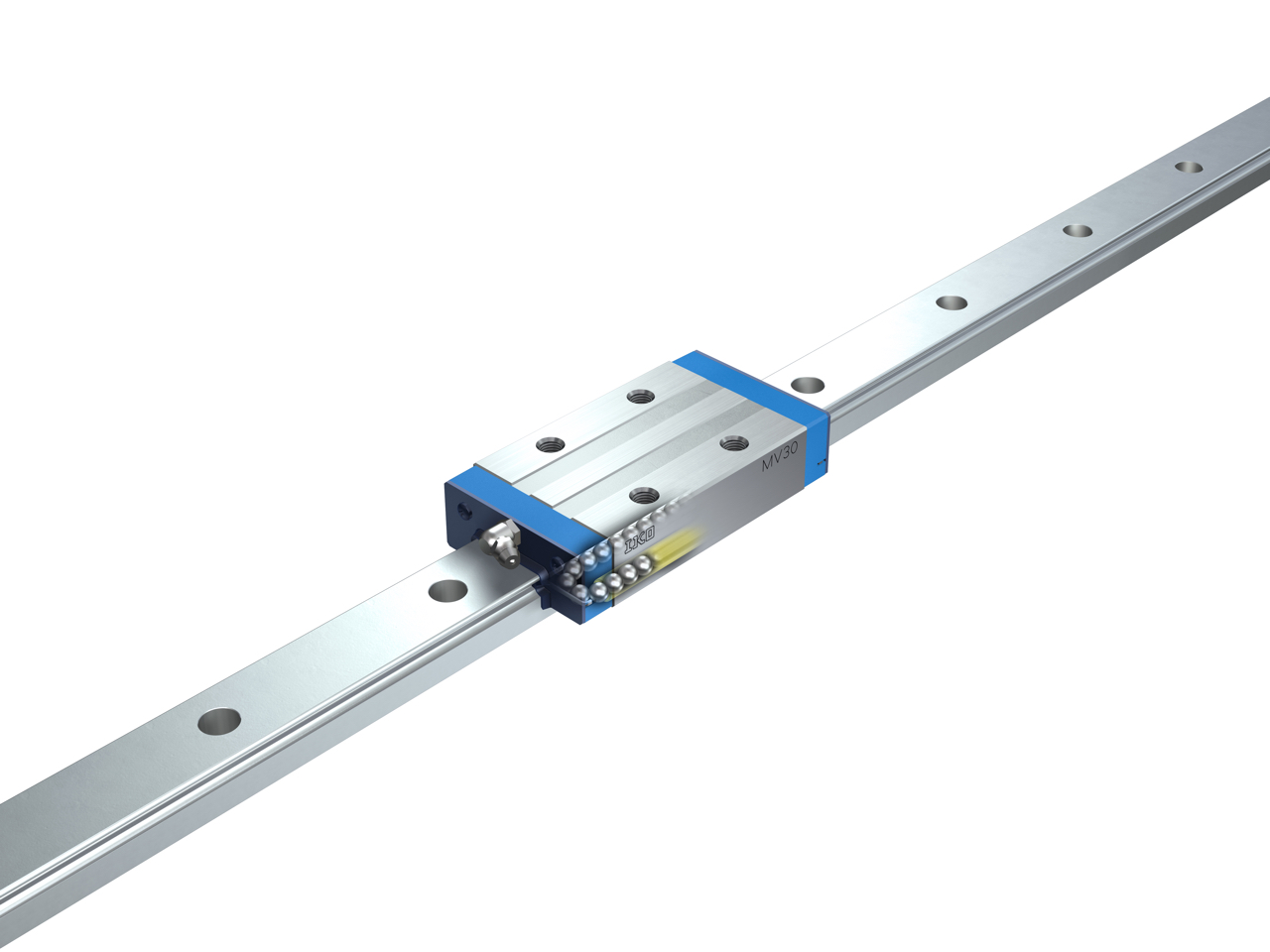

Linear Motion Rolling Guides C-Lube Linear Way MV

Despite its extra-low profile and light-weight, the IKO C-Lube Linear Way MV has the maximum downward load rating among ball types with high load capacity. It also provides long-term, maintenance-free operation since the slide unit has built-in C-Lube lubrication.

Product Features

Low Profile/Lightweight

Super low profile/lightweight is achieved by utilizing a simple two-row raceway with four-point contact structure. This contributes to the compactness and reduced driving power of the machines and devices.

High Load Capacity/High Rigidity

Despite its extra-low profile and extra-lightweight, it has the maximum downward load rating among ball types with a large load capacity and high rigidity. This contributes to longer-life and increased safety for the machines and devices.

Ball Retention

The slide unit incorporates the ball retaining band, which prevents the ball from dropping down when the slide unit is removed from the track rail, making it easy to handle.

Maintenance-Free

Since the lubrication oil inside C-Lube maintains the lubrication performance for a long time, it reduces annoying lubricating management work.

Click here for details on C-Lube

Line-Up

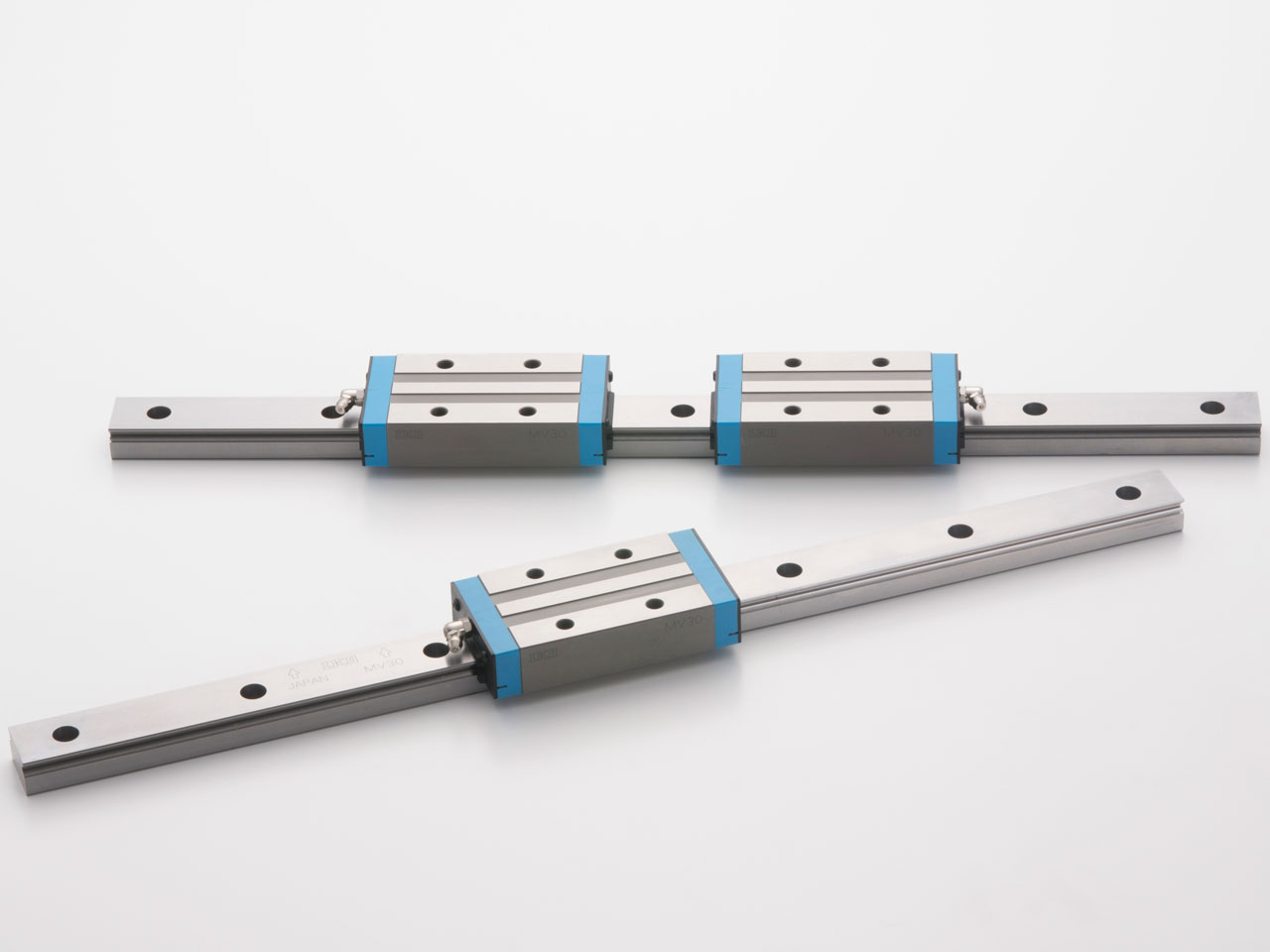

C-Lube Linear Way MV

Product	Shape	Length of slide unit	Model	Size
Product	Shape	Length of slide unit	Model	20	25	30
C-Lube Linear Way MV		Standard	MV	○	○	○

Special Specifications

Caps for Rail Mounting Holes

Dedicated caps for rail mounting holes are included. They close track rail mounting holes to improve sealing property in a motion direction. Contact IKO for aluminum alloy caps for rail mounting holes.

Double end seals

Double end seals are mounted to the interchangeable specification slide unit to improve the dust protection property.

Black chrome surface treatment

Acrylate resin coating is applied to improve the rust prevention property after black impregnated chrome surface treatment.

Fluorine black chrome surface treatment

A fluorinated resin coating is applied to improve the rust prevention property after black impregnated chrome surface treatment. This also prevents foreign substances from sticking to the surface.

Under seal

The seal is attached to the bottom of the slide unit to prevent foreign substances from entering from underneath.

Specified grease

Low Dust-Generation Grease for Clean Environment CG2 is pre-packed.

Scraper

A metal scraper is mounted to the slide unit. The scraper is non-contact type and effectively eliminates large foreign substances adhering to the track rail.

Other Special Environment Specifications
