Linear Motion Rolling Guides Linear Roller Way X

LRWX

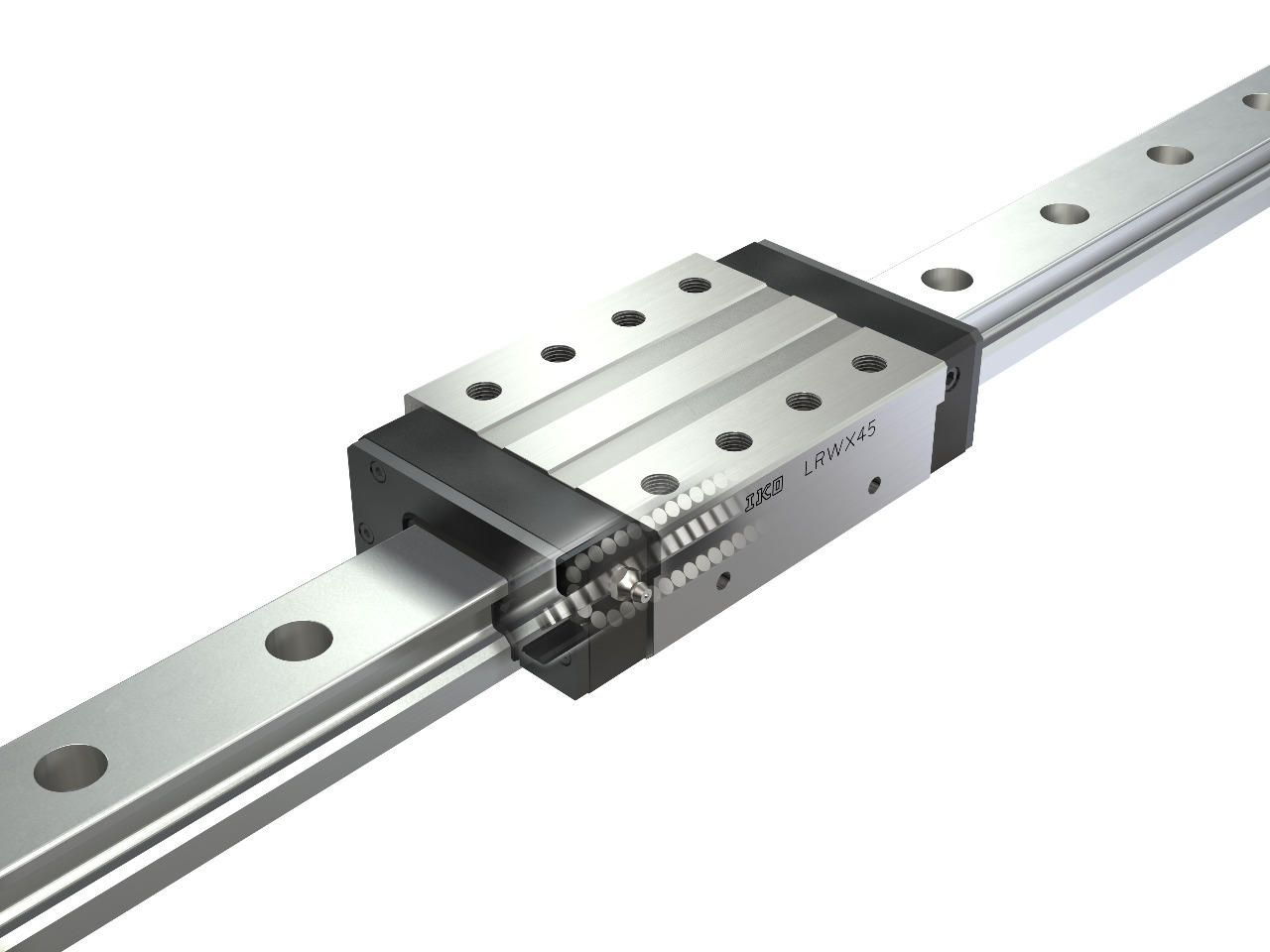

A roller type linear motion rolling guide with cylindrical rollers in four rows. The well-balanced roller arrangement allows it to evenly withstand loads in all directions. Slide unit shapes include a flange type that can be mounted from either the top or bottom and a narrow block type.

Line-Up

Linear Roller Way X

Product Shape Model Size
25 35 45 55 75
Linear Roller Way X ブロック形下方向取付け LRWX…B
Linear Roller Way X フランジ形上方向取付け LRWXH -

Special Specifications

Caps for rail mounting holes

Dedicated caps for rail mounting holes are included. They close track rail mounting holes to improve sealing property in a motion direction. Contact IKO for aluminum alloy caps for rail mounting holes.

Double end seals

Double end seals are mounted to the interchangeable specification slide unit to improve the dust protection property.

Scraper

A metal scraper is mounted to the slide unit. The scraper is non-contact type and effectively eliminates large foreign substances adhering to the track rail.

Female threads for bellows

Female threads for bellows are prepared on the slide unit and track rail ends.

Black chrome surface treatment

Acrylate resin coating is applied to improve the rust prevention property after black impregnated chrome surface treatment.

Fluorine black chrome surface treatment

Fluorinated resin coating is applied to improve the rust prevention property after black impregnated chrome surface treatment. In addition, this prevent foreign substances from sticking to the surface.

With C-Lube plate

The C-Lube impregnated with lubricant is attached inside the end seal of the slide unit, so that the interval for reapplicating lubricant can be extended.
