Mechatronics Series Alignment Table AT

  • Alignment Table AT

Mechatronics Series Alignment Table AT

AT

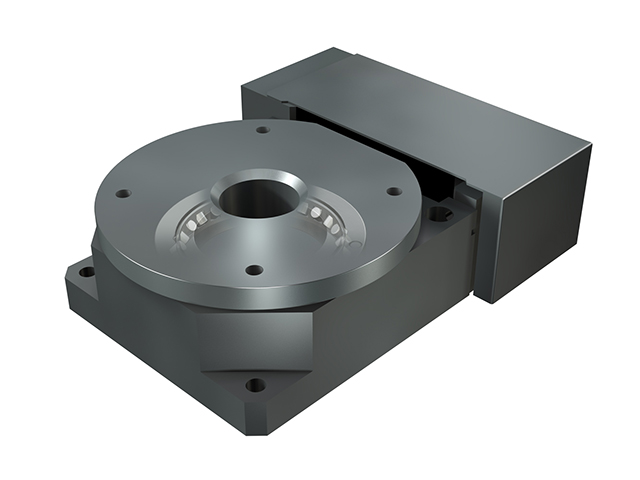

Alignment Table AT is a rotary positioning mechanism capable of precise angle correction, in which a high rigidity steel table and bed are used and IKO Crossed Roller Bearings are incorporated in the bearings supporting the table. Alignment Table AT uses the ball screw drive to convert linear motion into circular motion in a fixed angle range and positions the table in the rotational direction. An IKO Linear Way L is used for the linear motion rolling guide of the ball screw drive mechanism, combined with a precision ball screw to achieve high precision positioning. Placing Alignment Table AT on the slide table of the IKO Precision Positioning Table enables the configuration of a low height XY-θ multi-axis positioning mechanism. This enables the table to be used as an alignment table for precision measuring equipment, inspection equipment and assemblers.
