Linear Guide (Shaft guide model): Endless Linear Motion High Accuracy

Linear Motion Rolling Guides Linear Ball Spline G

The IKO Linear Ball Spline G is a linear motion rolling guide in which an external cylinder performs endless linear motion along the spline shaft. Since two rows of steel balls come in contact with the raceway surface at four points, stable accuracy and rigidity can be achieved even in applications where load with variable direction and size or complex load is applied. This Linear Ball Spline is extremely compact thanks to its simple structure.

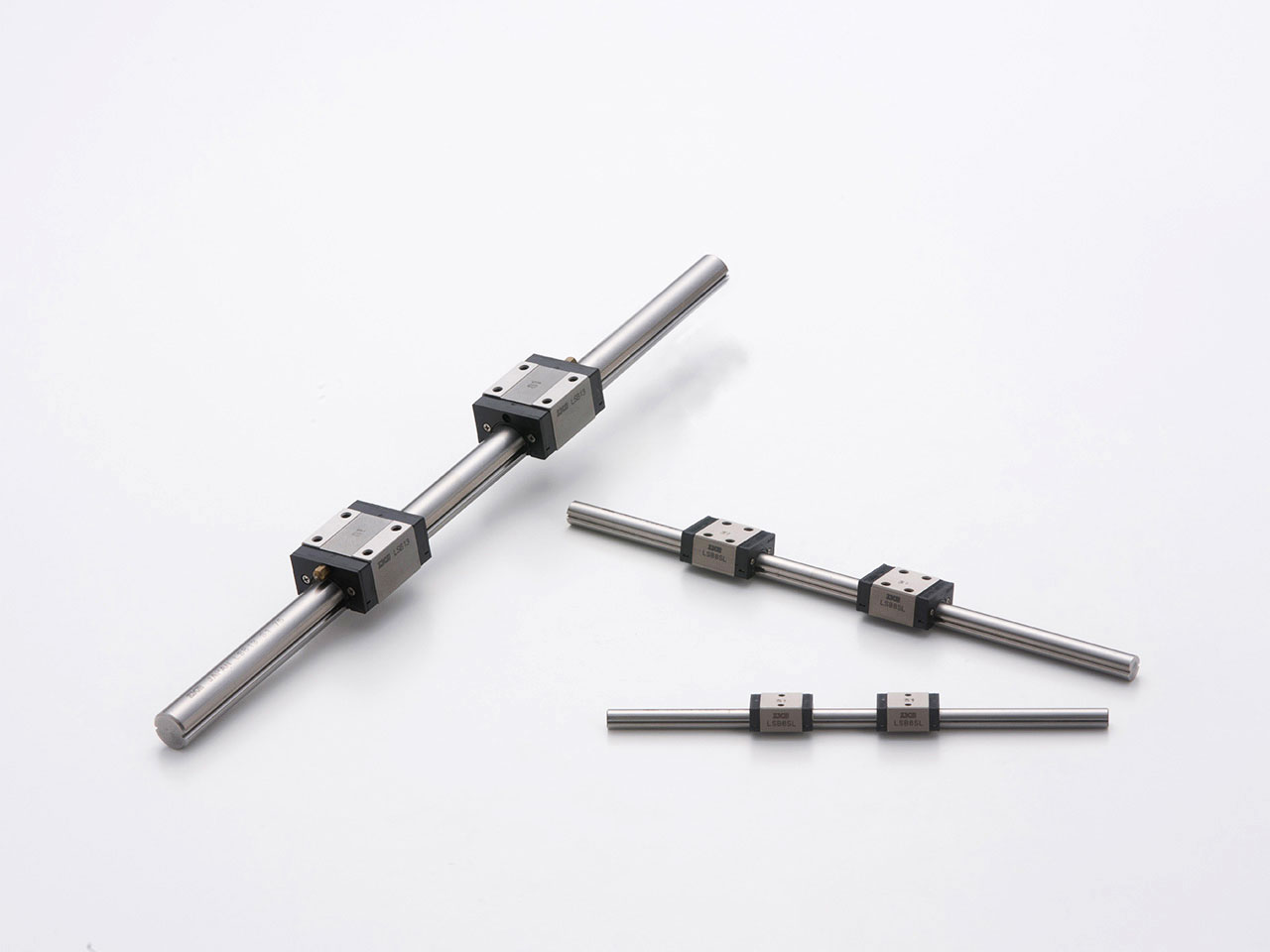

Linear Motion Rolling Guides Block Type Linear Ball Spline

The IKO Block Type Linear Ball Spline is a linear motion rolling guide in which the slide unit performs endless linear motion along the spline shaft. Since two rows of steel balls come in contact with the raceway surface at four points, stable accuracy and rigidity can be achieved even in applications where load with variable direction and size or complex load is applied.
