Linear Motion Rolling Guides Flat Roller Cage

  • Flat Roller Cage

Linear Motion Rolling Guides Flat Roller Cage

FT FTW…A

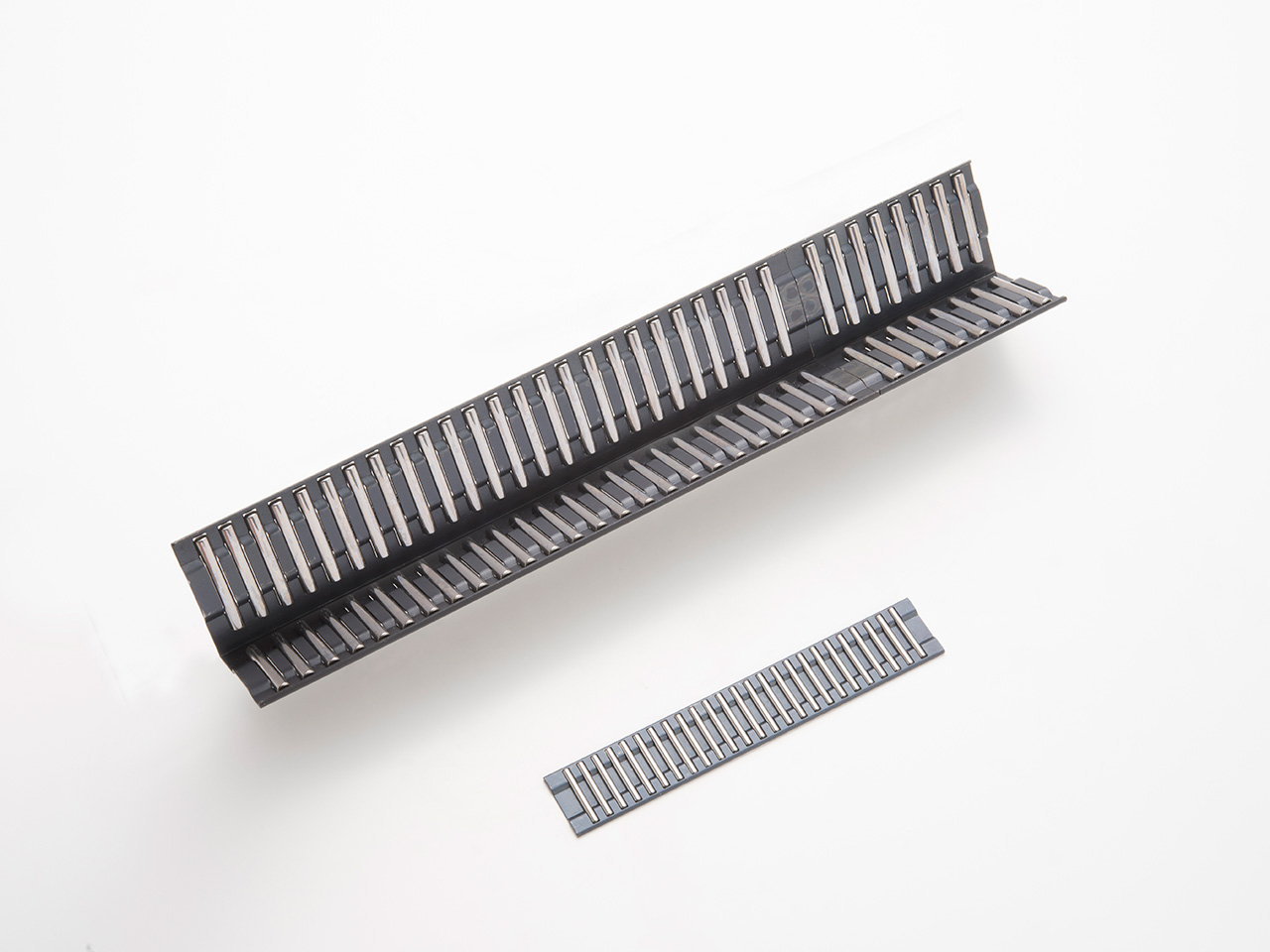

The IKO Flat Roller Cage is a limited linear motion guide consisting of high accuracy rollers and very precise cages with low cross sectional height. Since rollers are assembled in a cage with a small pitch distance, load ratings are large and rigidity is high. A single row model and a double row model with a 90° angle are standard and can be used to convert conventional plain guiding parts in machine tools into a rolling guide type, without a large-scale redesign of the bed. Since the high accuracy cage guides the rollers, the frictional resistance is very low without stick-slip, and stable linear motion is obtained.Cages made of synthetic resin are ideal for applications where low noise is required. The rollers are caged securely in a retainer, allowing for easy handling.

Flat Roller Cage


Line-Up

Flat Roller Cage

Product Shape Material Model Size
20 25 30 35 40 50 100 200
Flat Roller Cage 単列 Steel made FT
Flat Roller Cage Synthetic resin FT…N - - - -

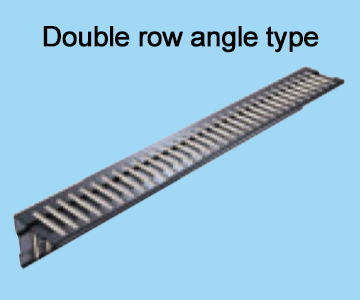

Flat Roller Cage 複列アンサンブル Steel made FTW…A - - - -
