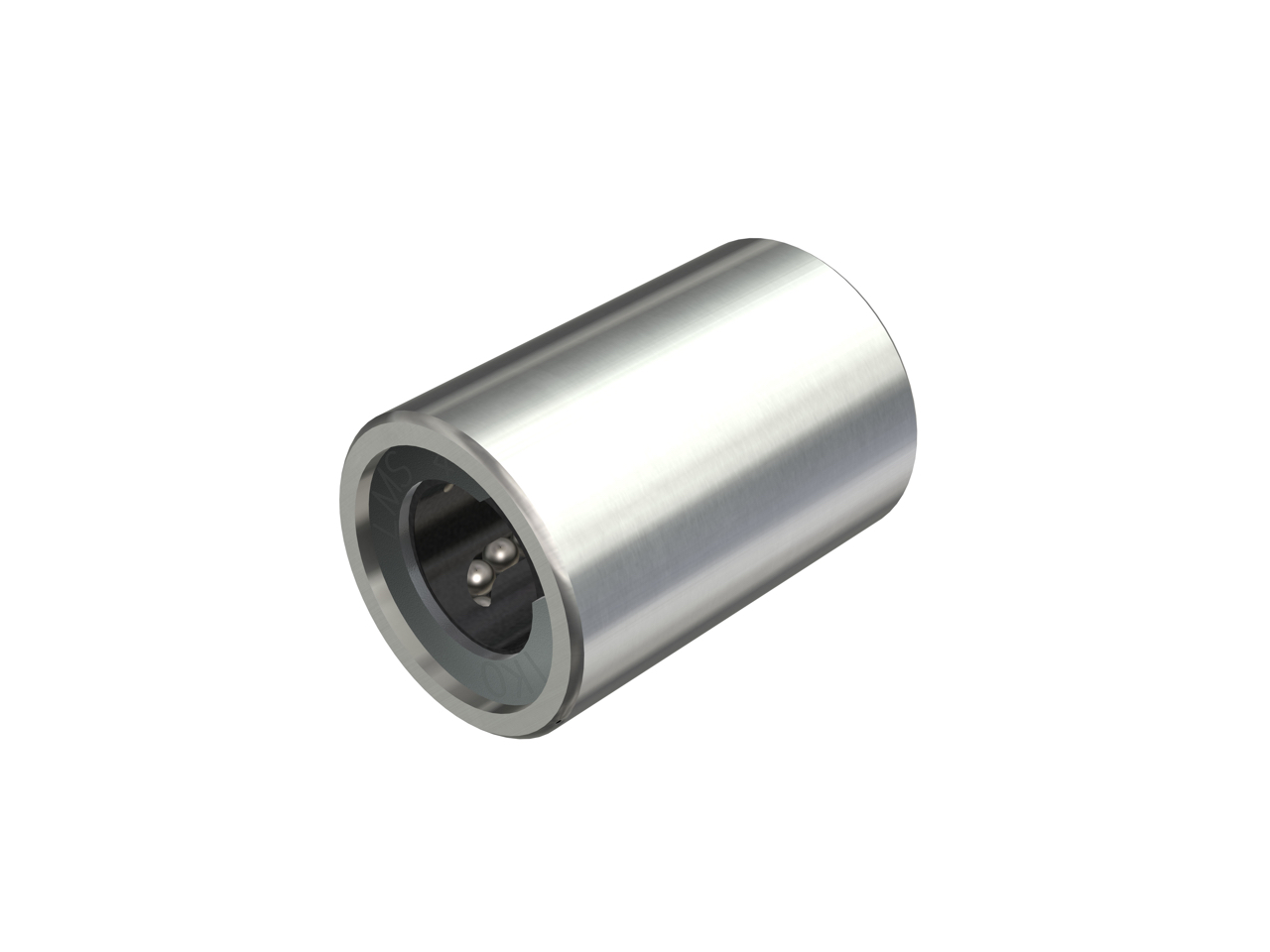

The IKO Miniature Linear Bushing is an extremely small linear motion rolling guide with a shaft diameter of 3 to 5 mm that performs endless linear motion in the axial direction while making rolling contact with the shaft. Cage, steel balls and stop ring are compactly built in the external cylinder, allowing high feed accuracy to be obtained.
Product Features
Low Frictional Resistance
Since the steel balls are accurately guided by the cage, stable linear motion can be obtained with small frictional resistance.
Compact Design
The ultra-small size allows for compact machine and device design.

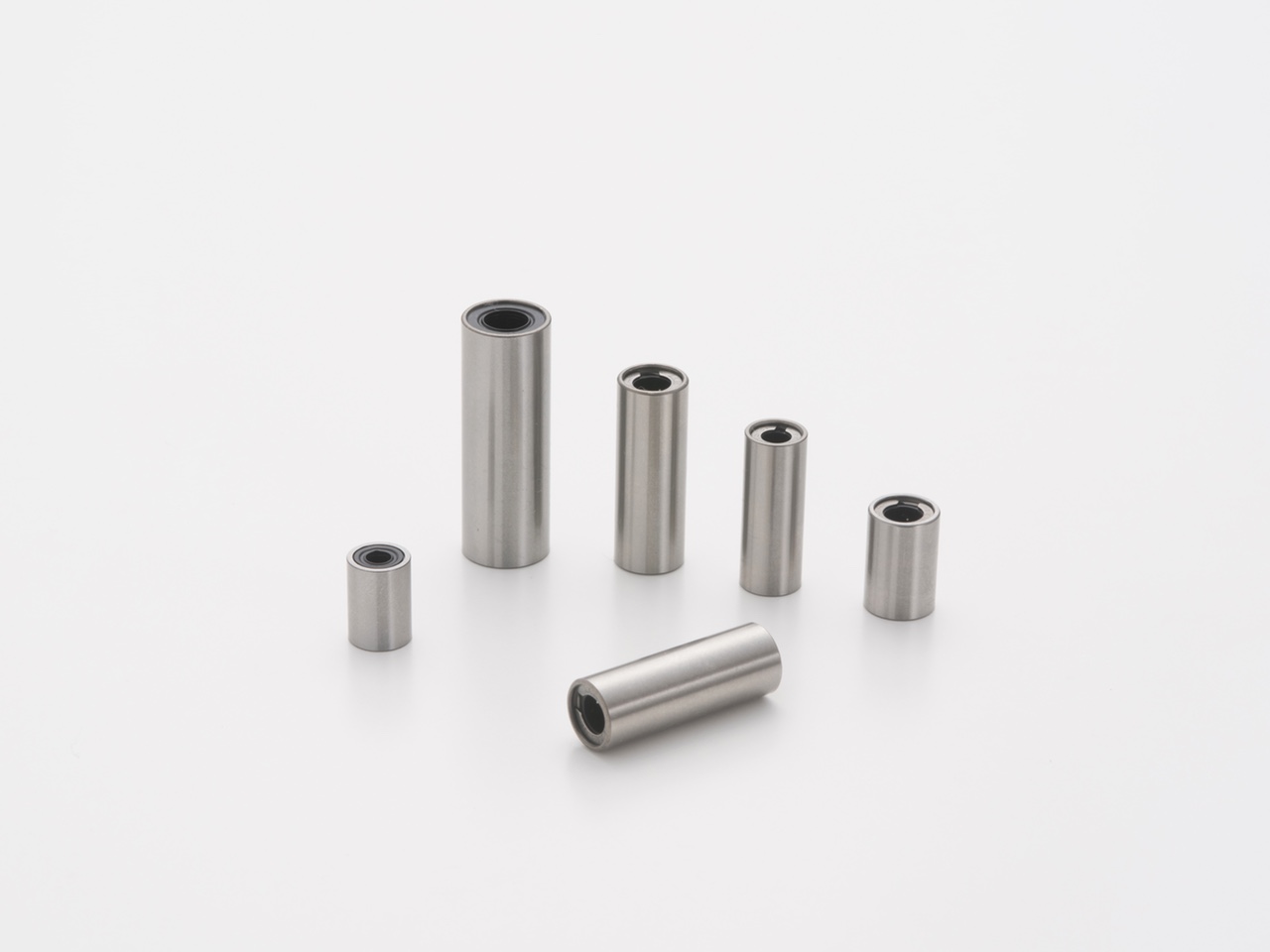

Wide Variation
In addition to the standard type, the high-rigidity long type has been serialized and can be selected according to the application.
Stainless Steel
Stainless steel types are also available, with excellent corrosion resistance and ideal for use in clean rooms, such as in medical equipment, various disc readers and semiconductor manufacturing devices.
Line-Up
Miniature Linear Bushing - High carbon steel
Productl | Shape | External cylinder length | Seal | Model | Size | ||
---|---|---|---|---|---|---|---|
3 | 4 | 5 | |||||
Miniature Linear Bushing | Standard | Not sealed | LMS | ○ | ○ | ○ | |
Standard | With two end seals | LMS…UU | ○ | ○ | ○ | ||
Long | Not sealed | LMSL | ○ | ○ | ○ | ||
Long | With two end seals | LMSL…UU | ○ | ○ | ○ |
Miniature Linear Bushing - Stainless steel
Product | Shape | External cylinder length | Seal | Model | Size | ||
---|---|---|---|---|---|---|---|
3 | 4 | 5 | |||||
Miniature Linear Bushing | Standard | Not Sealed | LMS…F | ○ | ○ | ○ | |
Standard | With Two End Seals | LMS…FUU | ○ | ○ | ○ | ||
Long | Not Sealed | LMSL…F | ○ | ○ | ○ | ||
Long | With Two End Seals | LMSL…FUU | ○ | ○ | ○ |
