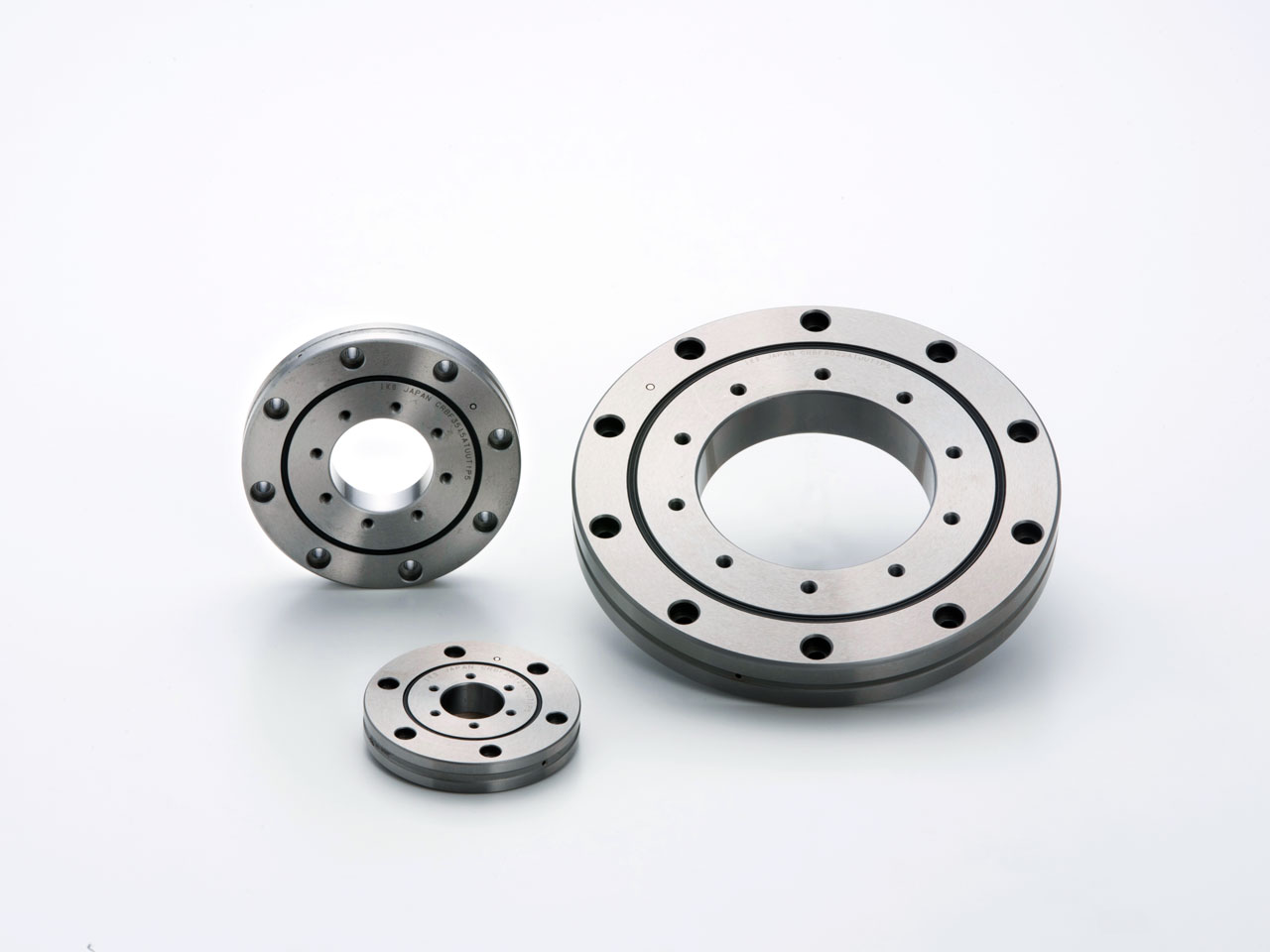

IKO Mounting Holed Type High Rigidity Crossed Roller Bearings V CRBFV

IKO Mounting Holed Type High Rigidity Crossed Roller Bearings V CRBFV

IKOCrossed Roller Bearings are compact bearings with their rollers alternately crossed at right angles to each other between inner and outer rings. They can take loads from any directions at the same time such as radial, thrust and moment loads. The rollers make line-contact with raceway surfaces, and, therefore, elastic deformation due to bearing loads is very small.

Download

Download CAD Data Download PDF of Product Catalogue
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

Product Outline

CRBFV is manufactured at a dedicated site and achieves cost reductions and shortened lead times from manufacture to delivery through revision of our Crossed Roller Bearing design and manufacturing processes to be a Crossed Roller Bearing boasting excellent cost performance. This product can contribute to equipment cost reductions or shorter delivery times when integrated into various machines.
We also offer Crossed Roller Bearings with individual specifications customized to customers' usage applications. We have abundant manufacturing experience of special specification products so if you have any problems with a special product application, please contact IKO.

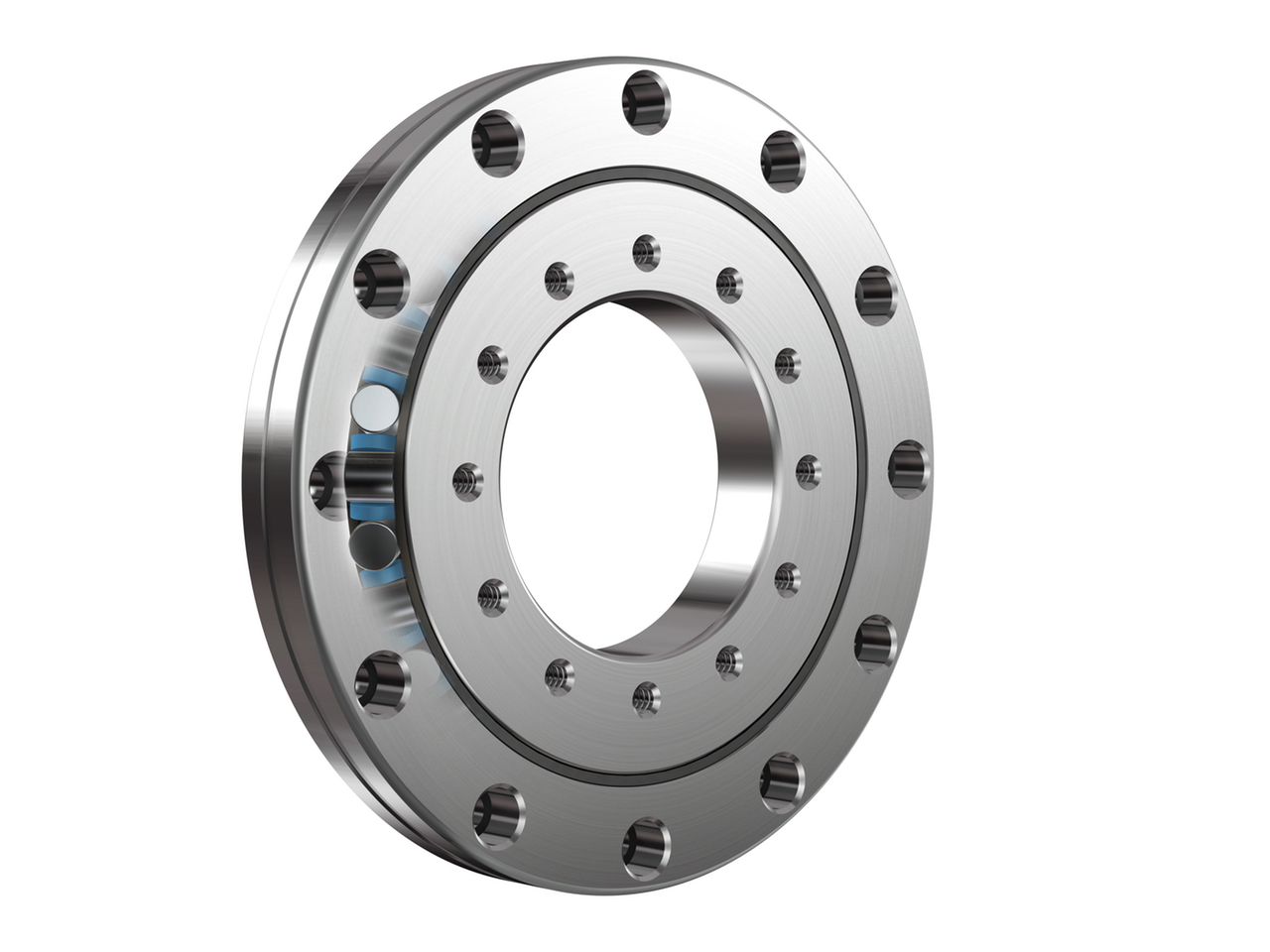

Internal Structures and Shapes

Roller

Rollers are arranged by intersecting orthogonally between inner ring and outer ring of the single structure. A separator, which can smoothly rotate rollers, is incorporated between rollers.
Crossed Roller Bearings with mounting holes on both the inner and outer rings facilitate installation to your machines and equipment.



Crossed Roller Bearings have an open type and a sealed type. With the sealed type, special synthetic rubber sealing is incorporated.



lineup

Model of bearing Mounting hole
on the inner ring
Seal structure Identification number Inner ring bore diameter
35 55 80 90 115
CRBFVA Tapped hole Open type CRBFVAT Δ Δ Δ
Sealed type CRBFVATUU Δ Δ Δ
Counter bores
in same configuration
Open type CRBFVA - - Δ Δ Δ
Sealed type CRBFVAUU - - Δ Δ Δ
Counter bores
in reverse configuration
Open type CRBFVAD - - Δ Δ Δ
Sealed type CRBFVADUU - - Δ Δ Δ

Δ:Starting December 2016
