Needle Roller Bearings Standard Type Crossed Roller Bearings

  • Standard Type Crossed Roller Bearings

Needle Roller Bearings Standard Type Crossed Roller Bearings

CRB CRBC

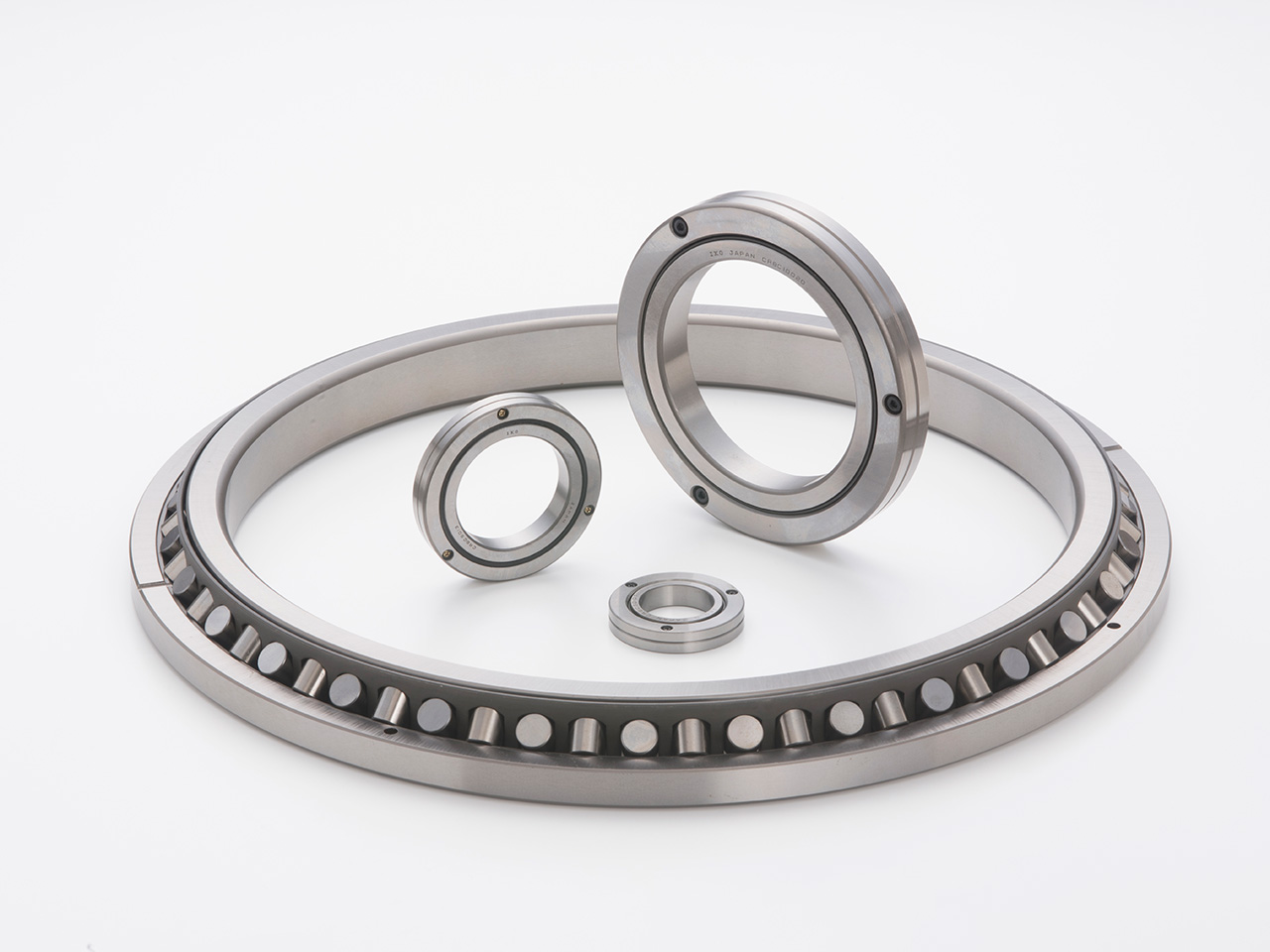

The outer ring of the Standard Type Crossed Roller Bearings is made of two split pieces, which are bolted together to prevent separation during transportation or mounting, enabling easy handling. These bearings are widely used in the rotating parts of industrial robots, machine tools, medical equipment, etc., which require compactness, high rigidity and high rotational accuracy. In addition, bearings made of stainless steel and those with inner and outer rings provided with mounting holes are also available on request. Please contact IKO.

Product Overview

What are Crossed Roller Bearings?

Standard Type Crossed Roller Bearings

Crossed Roller Bearings are compact bearings with their rollers alternately crossed at right angles to each other between inner and outer rings. The orthogonal array of rollers allows the bearing to handle complex loads simultaneously from any direction, which makes assembly possible without needing to worry about load direction.


Compact

Compact

The orthogonal array of rollers reduces the cross sectional area of rear-mounted 45° contact angle roller bearings or single row ball bearings by half. This compact design allows you to more effectively utilize space in your application.


High Rigidity

High rigidity

The figure is a cross-section of a rotating turntable. The application point distance from the time moment load is applied to the turntable is L, and the allowable moment load of the bearing is proportional to application point distance L. If increasing application point distance L to increase the moment rigidity of the turntable, two Angular Contact Ball Bearings are required. Because of the need for distance between the bearings, the equipment size increases as well. However, even a single Crossed Roller Bearing can increase application point distance L, keeping equipment compact and improving moment rigidity.

High rigidity

Because of the line contact structure, when using rollers for the bearing inner rolling elements, rigidity is greatly improved compared to ball type bearings. For example, rigidity is increased 3 to 4 times while achieving more compact cross-section dimensions compared to a double row Angular Contact Ball Bearing.
