Needle Roller Bearings Short Stud Type Cam Followers

CFC

IKO's Short Stud Type Cam Followers CFC···B have a new mounting structure using a hexagon socket head bolt and a dedicated flange nut.
This new structure maintains the performance of the cam follower while making it more compact and mountable.
Since CFC···B needs far less mounting space than conventional cam followers, it enables greater freedom in design, improving production efficiency in a wide range of industries.

Internal Structures and Shapes

CFC…BUUR

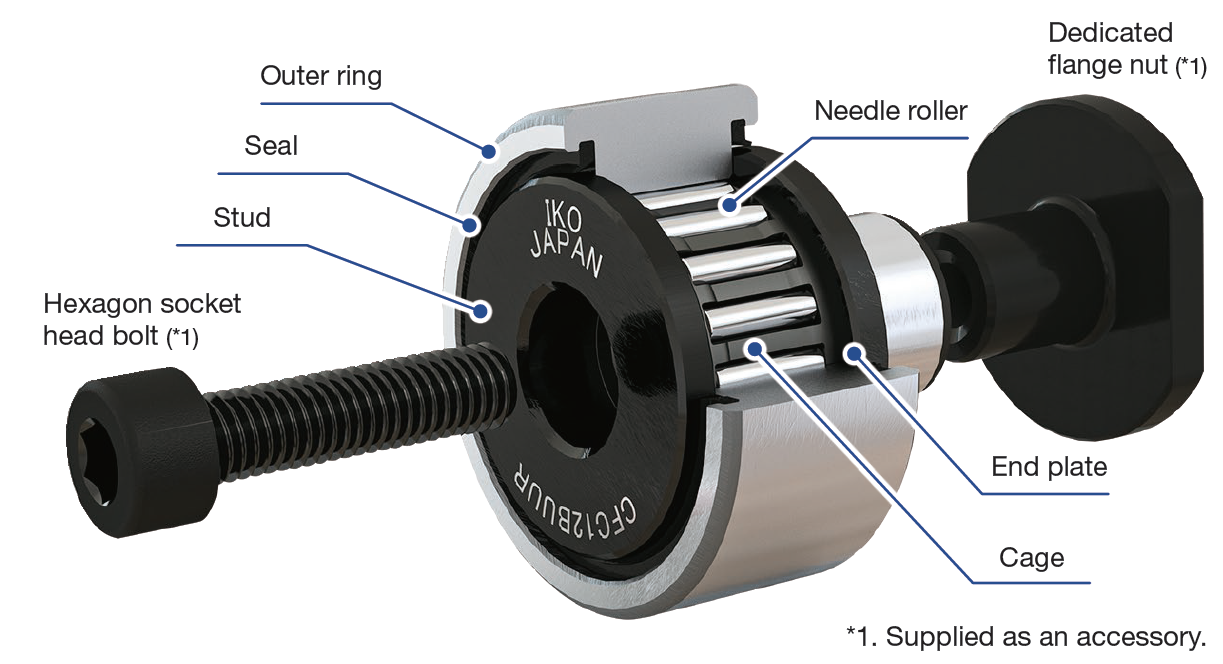

Short Stud Type Cam Followers/Internal structure

Features

Thoroughly compact design
By eliminating off-the-shelf nuts and adopting a new mounting structure using hexagon socket head bolts and special flange nuts, a significant amount of space is secured compared to standard cam followers.

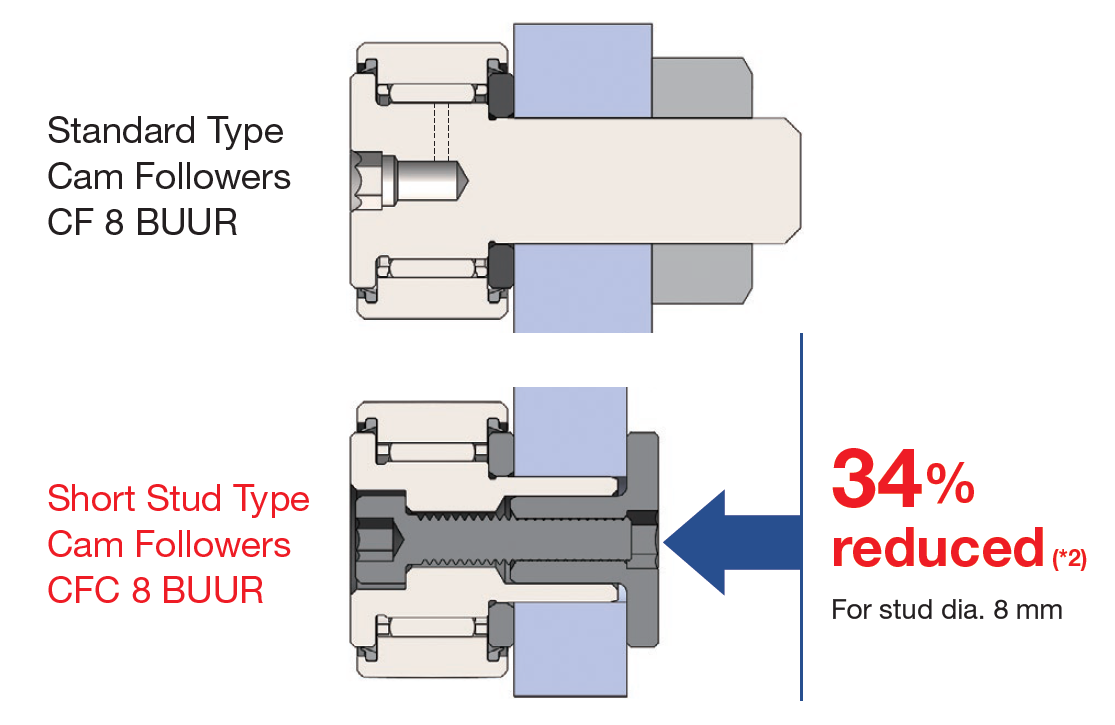

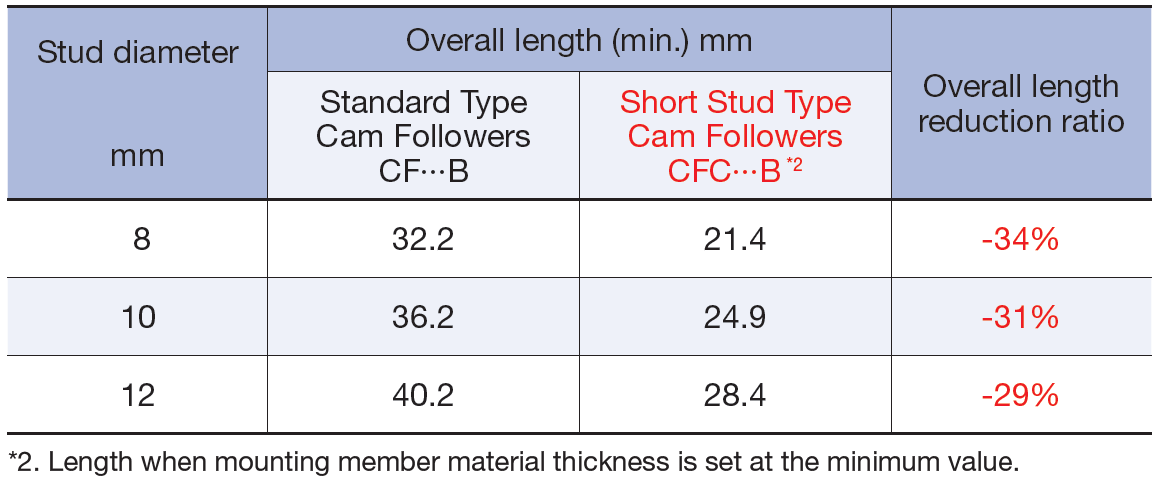

Short Stud Type Cam Followers/Size image

Ideal for difficult mounting locations
Short Stud Type Cam Followers significantly reduce the space occupied by nuts and studs.
They can be easily installed in locations that are difficult to install with standard cam followers, allowing for greater design flexibility.

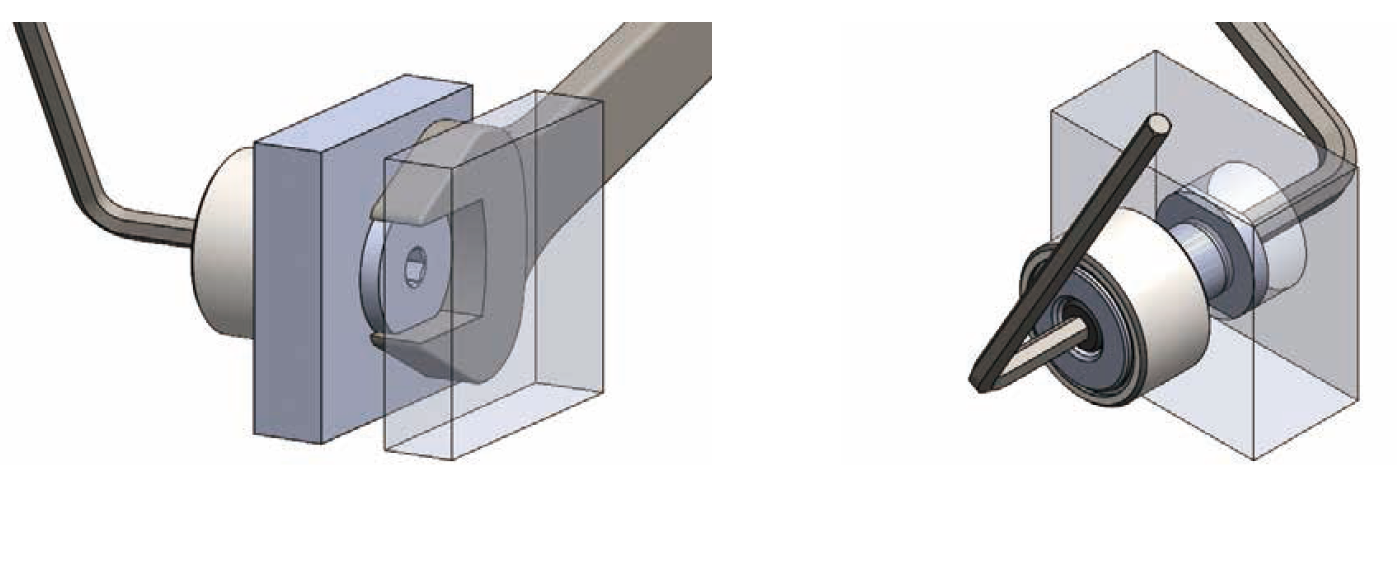

Short Stud Type Cam Followers/Installation
