Needle Roller Bearing Series

IKO Cam Followers for Easier Attachment CF-SFU

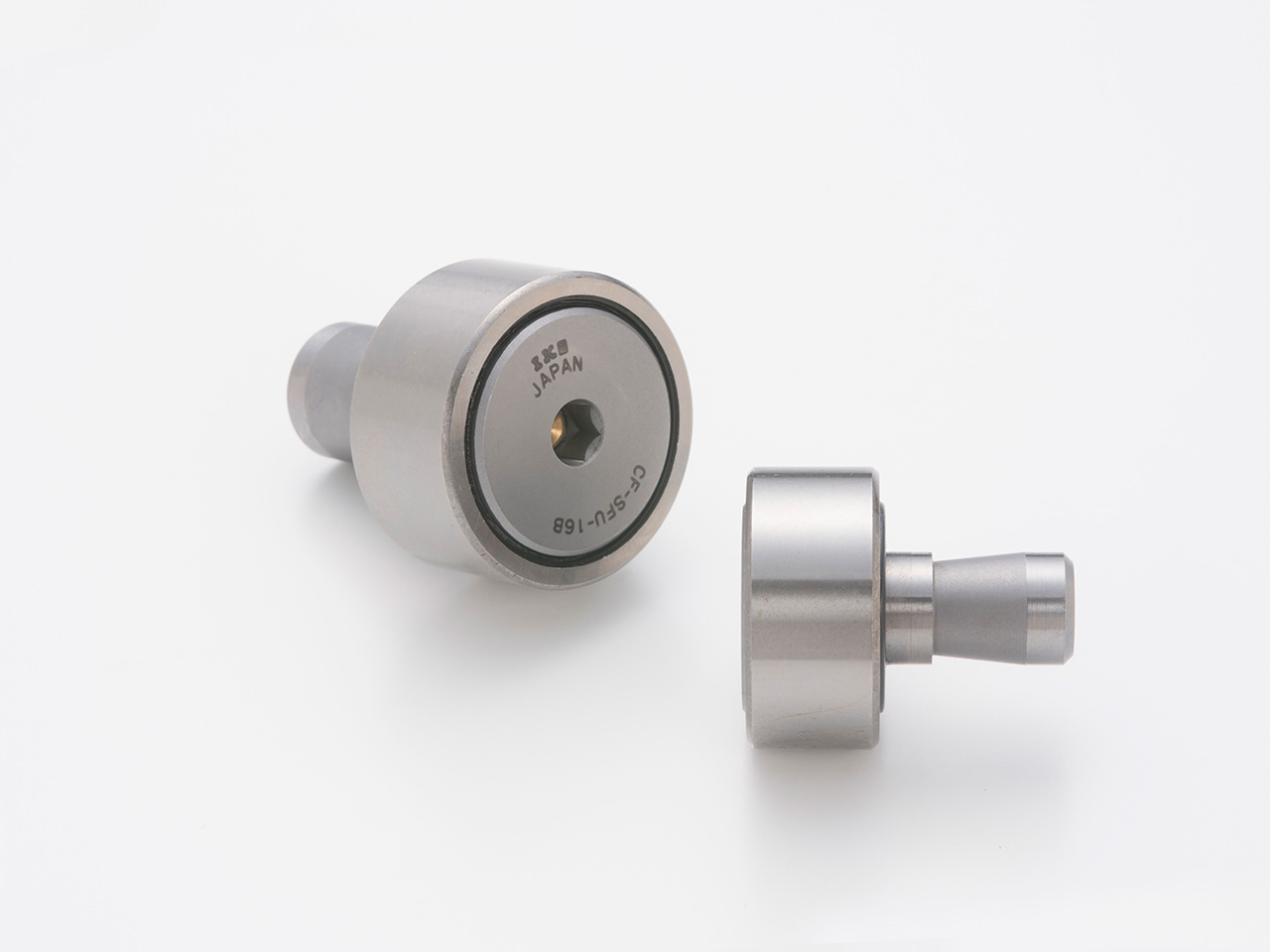

IKO Easy Mounting Type Cam Follower CF-SFU

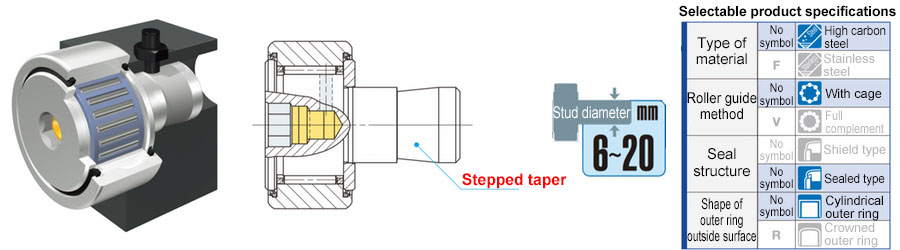

Since stepped processing is conducted on the stud, the stepped portion is fixed in place from the top with a setting screw, and attachment is easy. It is suitable for applications such as pallet changer.

Download

Download CAD Data Download PDF of Product Catalogue
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

Product Features

Oil can be supplied from the stud head portion of IKO Cam Follower with Hexagon Sockets

It possesses high rigidity and accuracy as guide roller for follower bearing and linear motion of cam mechanism so it is broadly used in machine tools, industrial robots, electronic parts and OA (Office Automation) equipment.
When compared with general screwdriver groove, since secure tightening can be performed with a hexagon bar spanner, workability of the assembly can be improved.
In addition, by the adoption of IKO's original grease supplying structure, grease up can be made from the stud head portion, and a free design unprejudiced by the grease supplying direction is possible.

Line-Up

Standard Cam Follower CF...(F)(V)B(UU R) Eccentric Stud Cam Follower CFES...B(UU R) Cam Follower with Eccentric Collar CFE...(V)B(UU R)
Cam Follower with Thrust Washer CF...(F)WB(UU R) Cam Follower for Easier Attachment CF-SFU...B Double Row Cylindrical Roller Cam Follower NUCF...BR
