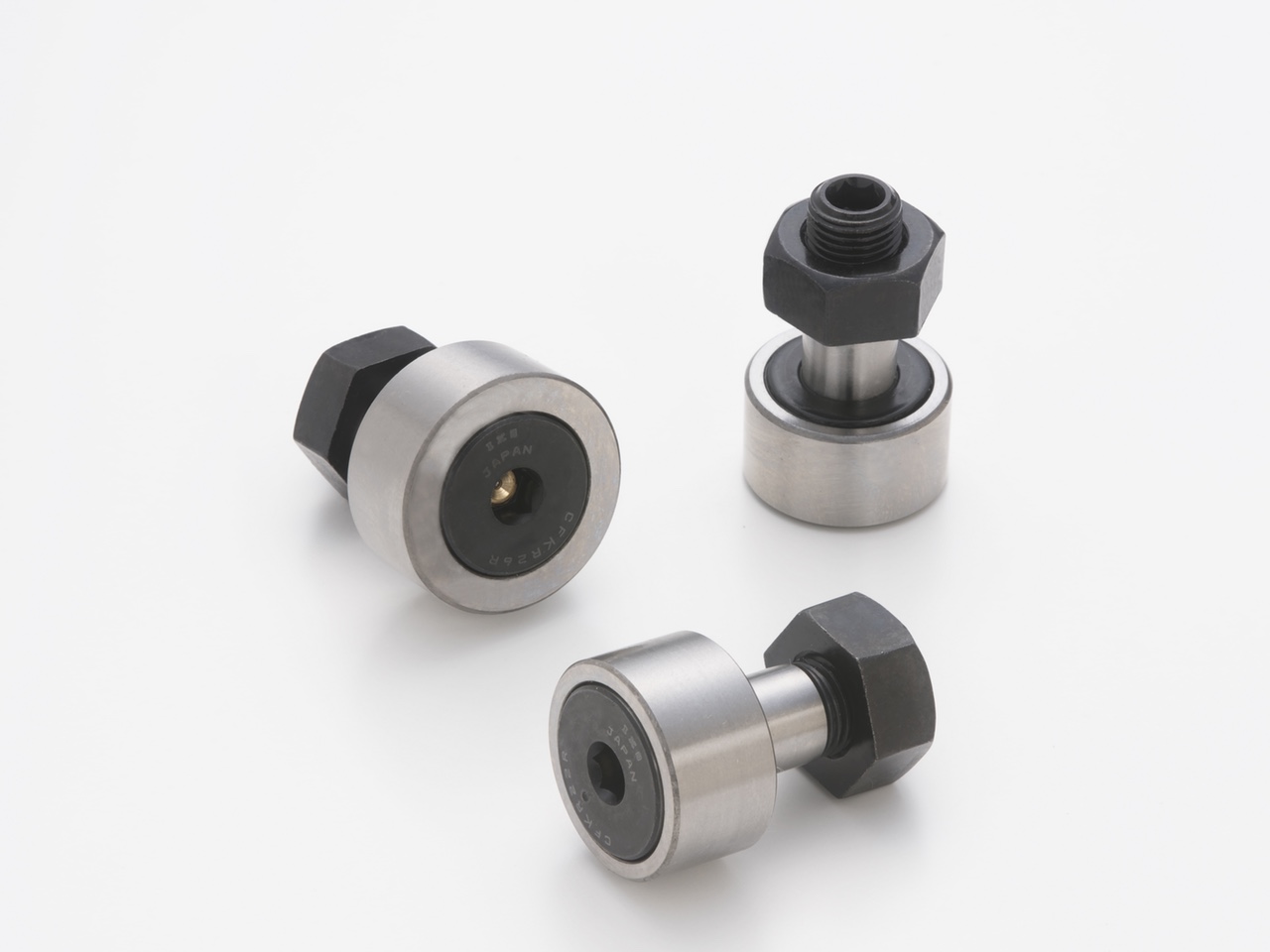

IKO Double Hex Hole Cam Followers CFKR

IKO Double Hex Hole Cam Followers CFKR

Cam Followers are bearings with a stud incorporating needle rollers in a thick walled outer ring. These bearings are designed for outer ring rotation, and have superior rotational performance with a small coefficient of friction and high load capacity.
Because Double Hex Hole Cam Followers have a structure with hexagon holes on both stud ends, there are no restrictions on their mounting locations.

Download

Download CAD Data Download PDF of Product Catalogue
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

Product Outline

Product Outline Product Outline
Product Features

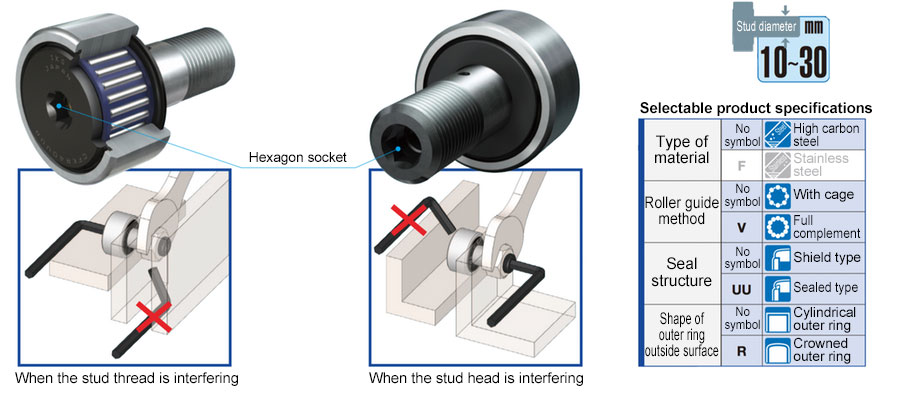

The sockets with hexagon hole on both stud ends allow mounting with a hexagon wrench from either side.



Line-Up

Bearing
Model
Roller
guide
method
Shape of
outer ring
outside
surface
Seal structure Identification Number Size
(outside diameter of outer ring)
30 32 35 40 47 52 62 72 80 85 90

Double
Hex Hole
Cam
Followers

With
cage
Crowned
outer ring
Shield type

CFKRR

Sealed type CFKRUUR
Cylindrical
outer ring
Shield type CFKR
Sealed type CFKRUU
Full
complement
Crowned
outer ring
Shield type CFKRVR
Sealed type CFKRVUUR
Cylindrical
outer ring
Shield type CFKRV
Sealed type CFKRVUU
