Needle Roller Bearing Series

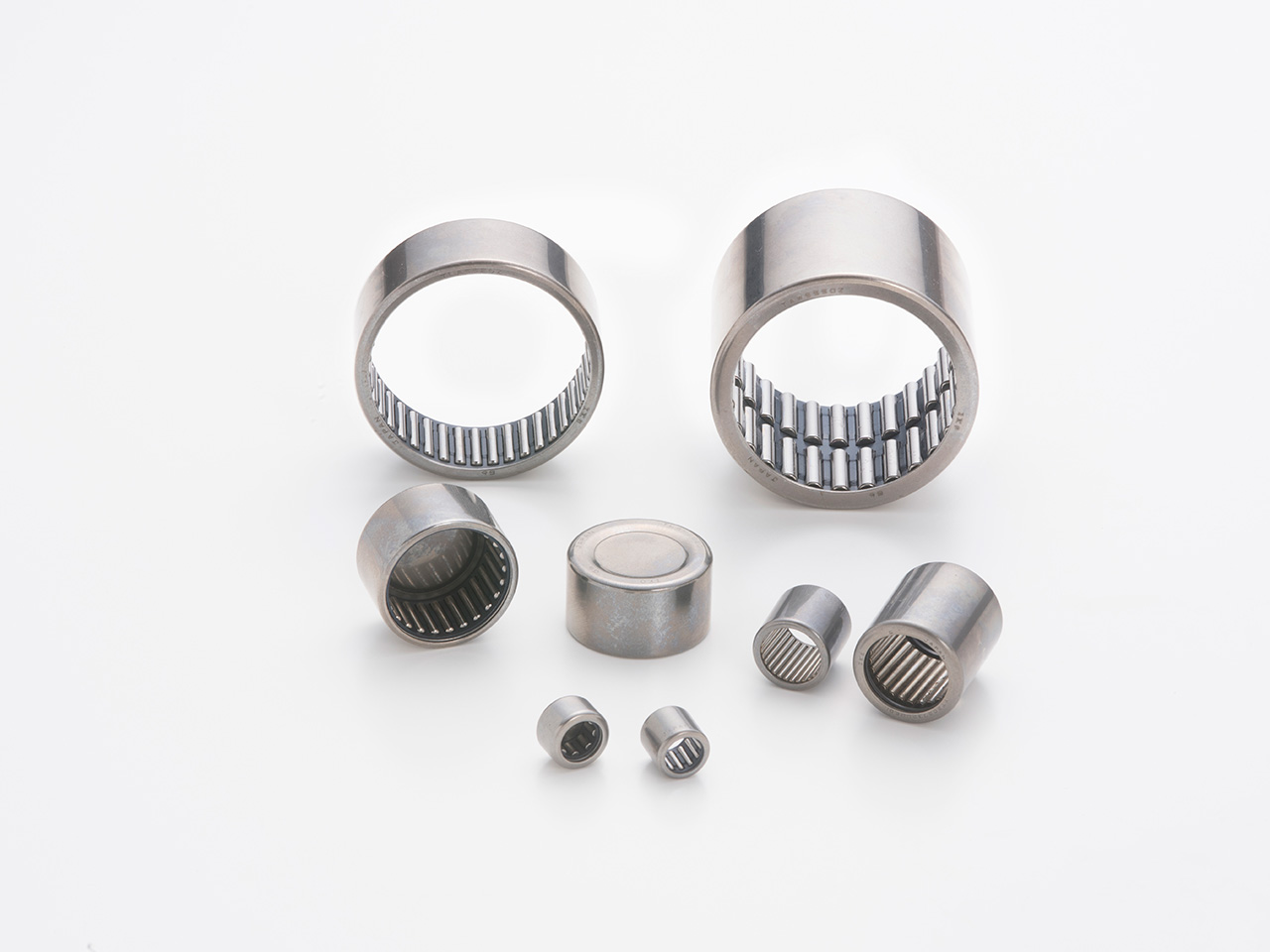

IKO Shell Type Needle Roller Bearings

IKO Shell Type Needle Roller Bearings

Types

  • Caged type
  • Grease retained full complement type

Download

Download CAD Data Download PDF of Product Catalogue
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

Product Features

IKOShell Type Needle Roller Bearings are light weight bearings with large load ratings. They employ a shell type outer ring made from a thin special steel plate which is accurately drawn, carburized and quenched, thus providing the lowest sectional height among the needle roller bearings. There are two types of bearings available in this series; the caged type and the full complement type. The appropriate type can be selected according to the operating conditions. The caged type has a structure in which the needle rollers are accurately guided by the cage and thrust rings. It is useful for applications at high-speed rotation. The full complement type needle roller bearing, on the other hand, is suitable for heavy-load applications at low-speed rotation. Since these bearings are press-fitted into the housing, no fixtures for axial positioning are needed. They are ideal for use in mass-produced articles that require economy, and have a wide variety of applications.
