Linear Motion Rolling Guide Series

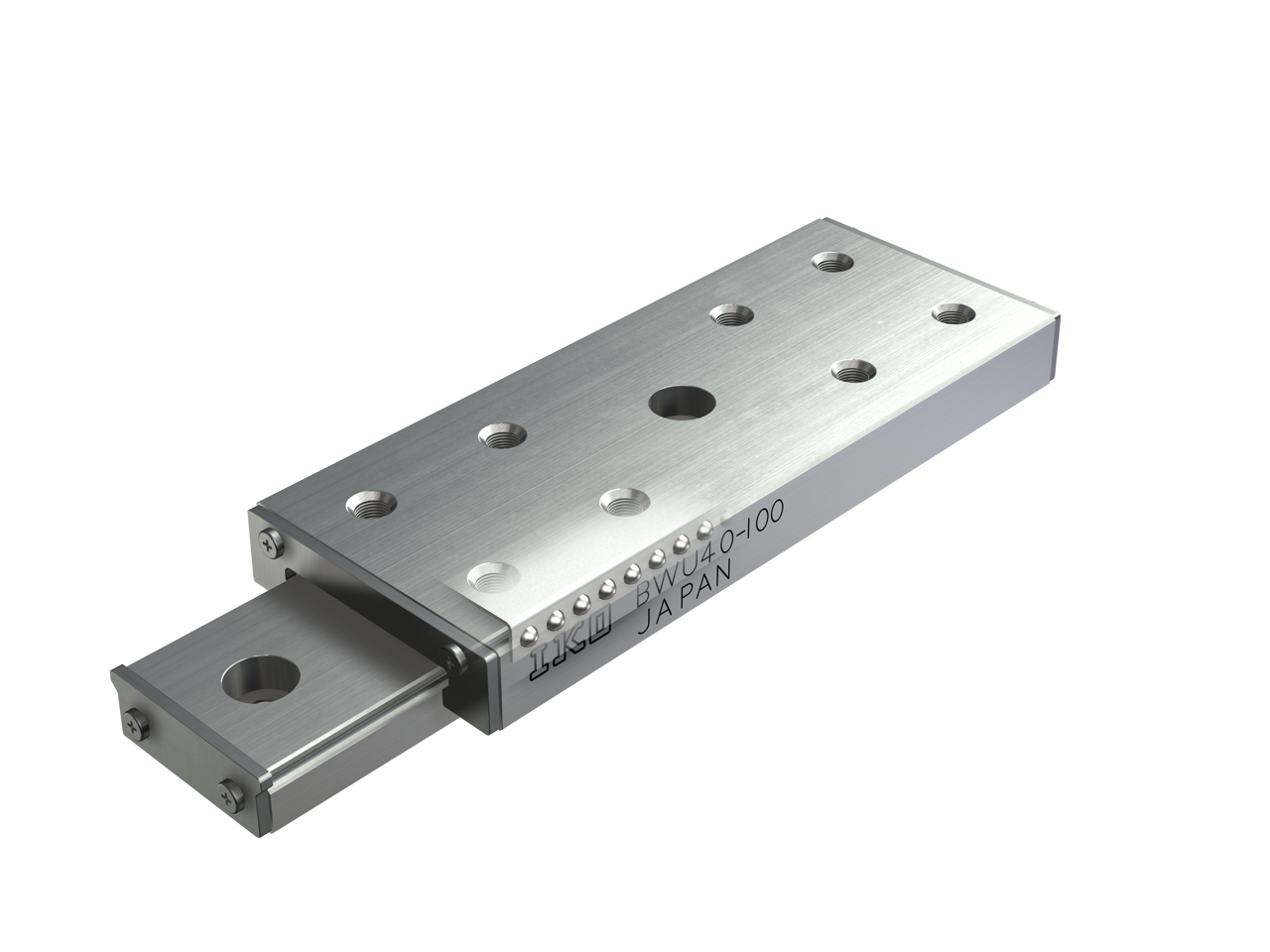

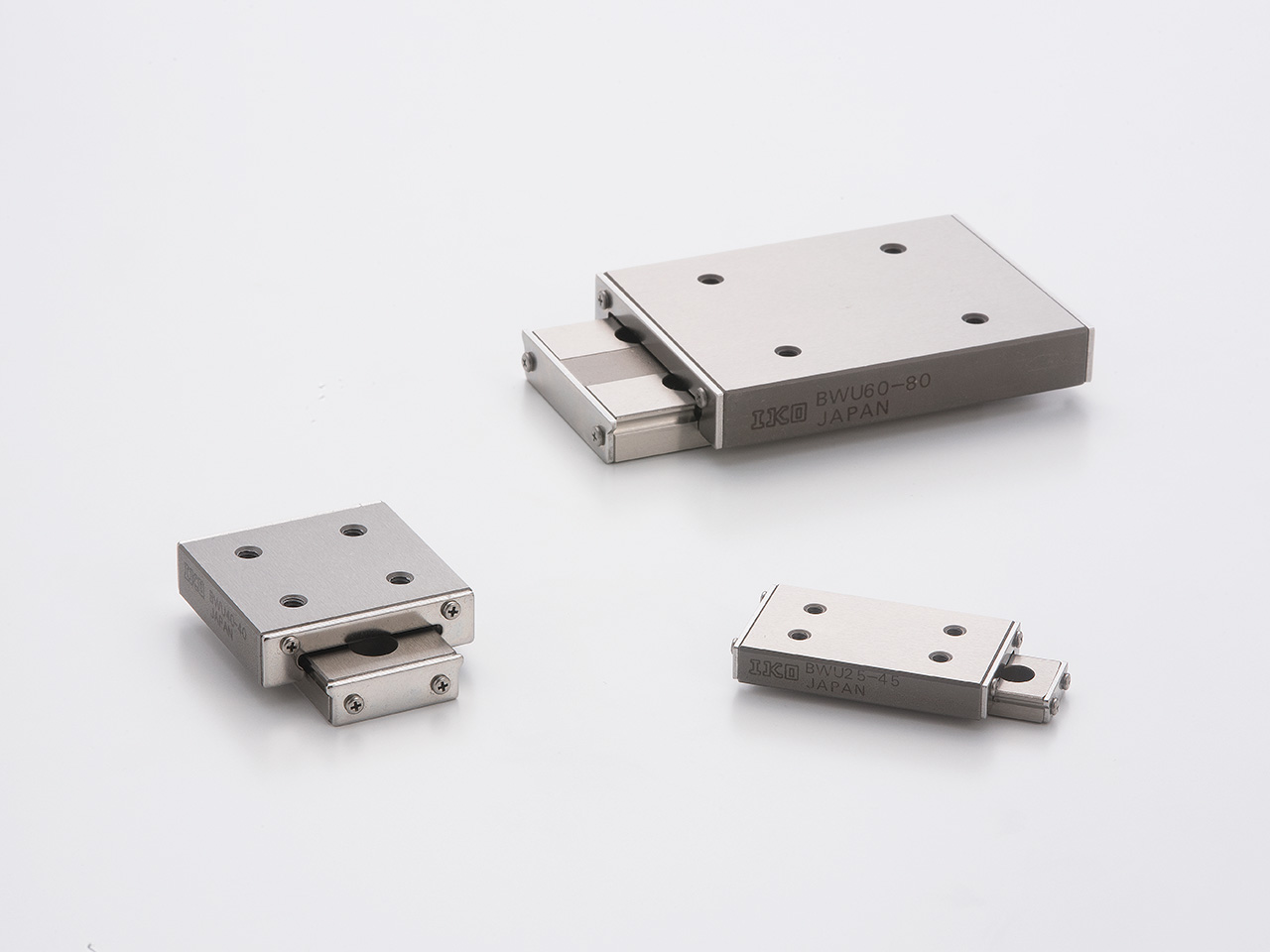

IKO High Rigidity Precision Ball Slide BWU

IKO High Rigidity Precision Ball Slide BWU

IKOHigh Rigidity Precision Ball Slide BWU is a compact linear motion rolling guide for limited stroke length. The unit incorporates two rows of steel balls in four point contact with the raceways so that stable accuracy and high rigidity are obtained even under fluctuating and complex loads. Wide variations in size are available for selections suitable for each application.

Download

Download CAD Data Download PDF of Product Catalogue
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

Product Features

High accuracy and smooth movement
Two raceways on the solid table and on the solid bed respectively are ground at one time to minimize processing errors and improve accuracy between the two raceways. High accuracy and smooth movement are assured.
Stainless steel type
All components are made of stainless steel to give superior corrosion and heat resistance. So this series is most suitable for use in clean rooms.

Line-Up

Model Width Length
10 15 20 25 30 40 45 60 75 80 90 100 120
BWU 6 - - - - - - - - - -
8 - - - - - - - - - -
10 - - - - - - - - - -
12 - - - - - - - - - -
17 - - - - - - - - - -
25 - - - - - - - - -
30 - - - - - - - -
40 - - - - - - - - -
60 - - - - - - - - -
